Water treatment facilities operate in some of the most demanding environments, requiring specialized metal fabrication services that understand the unique challenges of corrosive materials, stringent regulatory requirements, and continuous operation demands. Municipal and industrial water treatment plants depend on custom-fabricated metal components that can withstand constant exposure to chemicals, moisture, and varying temperatures while maintaining structural integrity for decades. Professional water treatment plant metal fabrication services combine expertise in metallurgy, welding certifications, and industry-specific knowledge to deliver components that meet both operational needs and safety standards.
Understanding Water Treatment Infrastructure Requirements
Water treatment facilities require an extensive range of metal components, from massive clarifier tanks to intricate piping systems. The complexity of these systems demands fabrication services that understand the comprehensive shop and field mechanic capabilities necessary for both new construction and ongoing maintenance.
Critical Components Requiring Specialized Fabrication

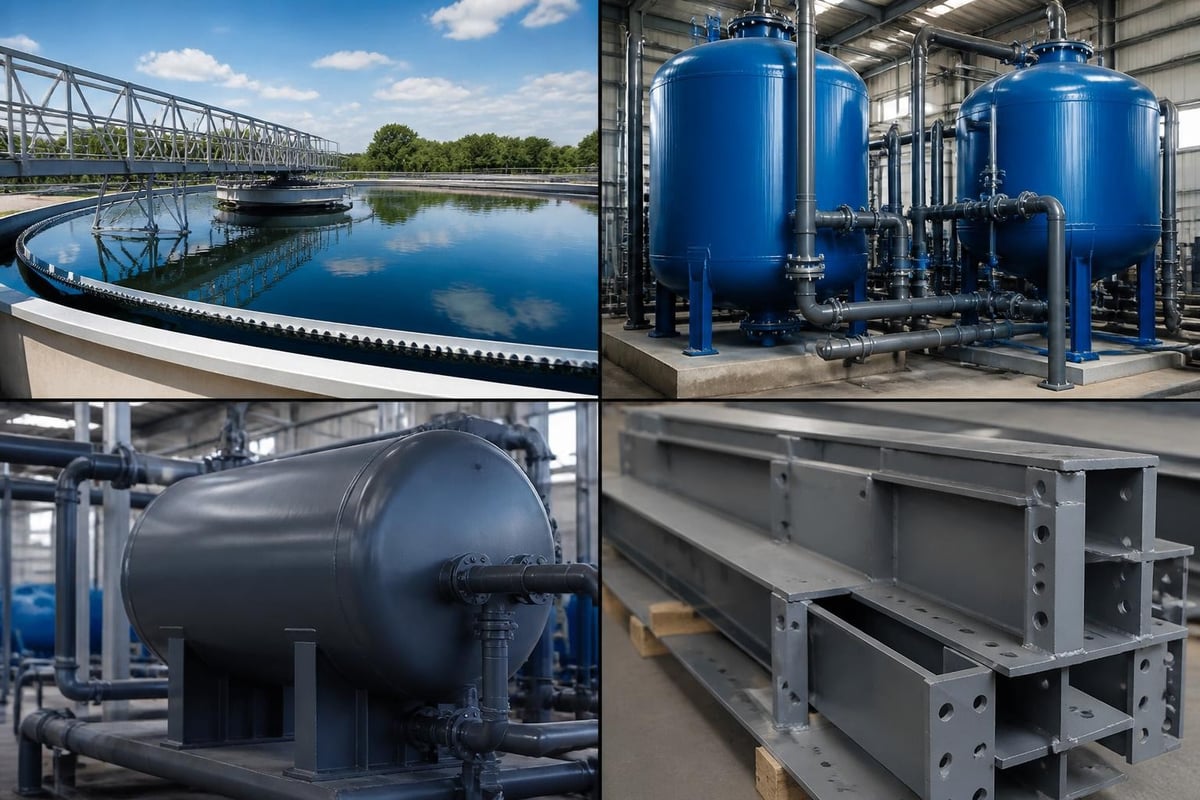

Water treatment plants rely on numerous custom-fabricated metal structures:
- Clarifier tanks and settling basins that separate solids from liquids through gravity
- Filter housings and pressure vessels designed to withstand specific PSI ratings
- Chemical feed systems with corrosion-resistant materials for dosing equipment
- Aeration tanks and diffuser systems requiring precise welding for air-tight integrity
- Sludge handling equipment including scrapers, conveyors, and dewatering components
- Structural platforms and walkways providing safe access for operators and maintenance teams
Each component must meet specific engineering standards while accommodating the corrosive nature of treatment processes. The materials selected for these applications directly impact longevity and maintenance costs over the facility's operational lifetime.
Material Selection for Water Treatment Applications
Choosing appropriate materials represents a critical decision in water treatment plant metal fabrication services. Different treatment stages expose metals to varying chemical compositions, pH levels, and temperatures.
| Material Type | Common Applications | Corrosion Resistance | Cost Factor |
|---|---|---|---|
| 304 Stainless Steel | General piping, handrails, light-duty tanks | Good in neutral pH | Moderate |
| 316 Stainless Steel | Chemical contact, coastal environments | Excellent chloride resistance | High |
| Duplex Stainless Steel | High-stress components, pumps | Superior strength and corrosion resistance | Very High |
| Carbon Steel (Coated) | Structural supports, non-wetted surfaces | Poor without coating | Low |
| Fiberglass-Reinforced Plastic | Large tanks, scrubber systems | Excellent chemical resistance | Moderate-High |
Selecting the wrong material can lead to premature failure, requiring expensive emergency repairs and potential environmental compliance issues. NACE International provides industry standards and best practices for corrosion control in water and wastewater systems, helping fabricators make informed material decisions.
Regulatory Compliance and Quality Standards
Water treatment facilities must comply with numerous federal, state, and local regulations governing water quality and safety. These regulations extend to the fabrication and installation of metal components that contact potable water or wastewater.
NSF/ANSI 61 Certification Requirements
For potable water systems, all materials that contact drinking water must meet NSF/ANSI 61 standards for toxicology testing. This certification ensures that fabricated components don't leach harmful substances into the water supply.
Water treatment plant metal fabrication services must maintain documentation proving material compliance, including:
- Mill certifications for all metal materials used in potable water contact
- Welding procedure specifications (WPS) approved for drinking water applications
- Non-destructive testing records demonstrating weld integrity
- Surface finish documentation meeting smoothness requirements to prevent bacterial growth
- Coating certifications for any protective finishes applied to components
Facilities serving the commercial and industrial manufacturing sectors understand these stringent requirements and maintain the documentation necessary for successful inspections.
Welding Certifications and Inspection Protocols
Professional welders working on water treatment components must hold specific certifications relevant to the materials and positions required. The American Welding Society (AWS) establishes standards that fabrication shops must follow.
Essential welding qualifications include:
- AWS D1.1 for structural steel welding on platforms and supports
- ASME Section IX for pressure vessels and piping systems
- AWS D1.6 for stainless steel welding in corrosive environments
- Specialized certifications for orbital welding of sanitary tubing
Third-party inspection agencies frequently verify weld quality through radiographic testing, ultrasonic examination, and dye penetrant testing. These quality control measures ensure that fabricated components will perform reliably throughout their service life.

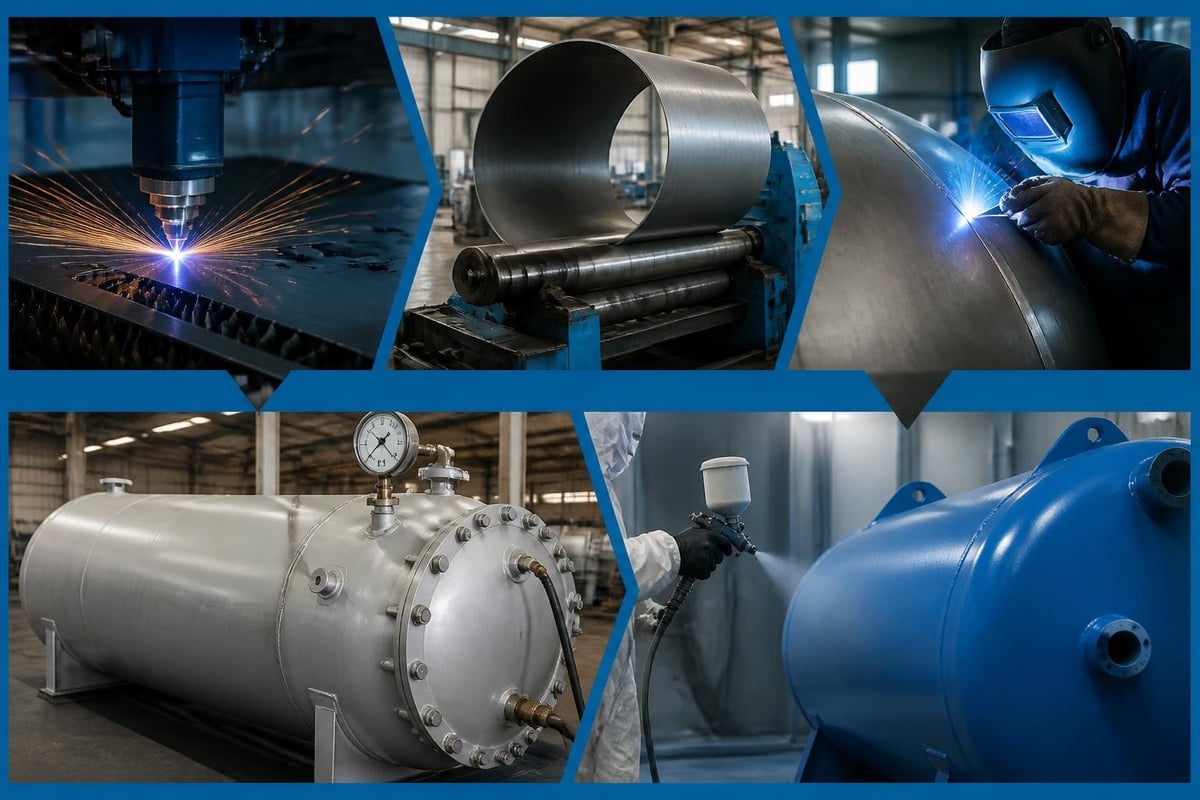

Custom Fabrication Processes for Water Treatment
The fabrication of water treatment components involves multiple specialized processes, each requiring specific equipment and expertise. Understanding these processes helps facility managers make informed decisions when selecting fabrication partners.
Precision Metal Cutting and Preparation
Modern water treatment plant metal fabrication services utilize advanced cutting technologies to achieve the precise tolerances required for complex assemblies. Metal cutting shops employ several methods depending on material type, thickness, and required edge quality.
| Cutting Method | Best Applications | Advantages | Limitations |
|---|---|---|---|
| Plasma Cutting | Carbon steel up to 2 inches | Fast, economical | Heat-affected zone concerns |
| Laser Cutting | Stainless steel, precise cuts | Excellent accuracy, minimal distortion | Thickness limitations |
| Waterjet Cutting | All materials, no heat tolerance | No heat distortion, versatile | Slower than plasma |
| Oxy-Fuel Cutting | Thick carbon steel | Handles very thick materials | Limited to ferrous metals |
Proper edge preparation directly impacts weld quality and final component performance. Beveling, grinding, and cleaning prepare metal surfaces for the fusion processes that follow.
Rolling and Forming Large Components
Water treatment tanks and vessels often require rolling plate steel into cylindrical sections or forming metal into complex curves. Specialized rolling equipment can handle materials ranging from thin-gauge stainless to thick carbon steel plate.
Three-roll and four-roll plate bending machines create the consistent radius curves necessary for tank construction. The process requires careful calculation of material properties, as different alloys exhibit varying degrees of springback after forming.
Critical forming considerations:
- Minimum bend radius based on material thickness and type
- Grain direction orientation to prevent cracking
- Temperature control for materials requiring hot forming
- Dimensional verification at multiple stages to ensure circular tanks remain truly round
Large clarifier tanks may exceed 100 feet in diameter, requiring field assembly of rolled sections with precise alignment to ensure proper function.
Field Services and On-Site Fabrication
While shop fabrication offers controlled environments and precision equipment, water treatment facilities often require field services for installation, repair, and modifications to existing systems. Combining both capabilities represents a significant advantage in water treatment plant metal fabrication services.
Emergency Repair and Maintenance Support
Water treatment facilities cannot afford extended downtime. When critical components fail, rapid response becomes essential to maintain water quality and regulatory compliance.
Field welding teams equipped with portable equipment can perform repairs without removing components from service. This capability is particularly valuable for:
- Repairing corroded sections of in-ground piping without excavation
- Welding patches on tanks and vessels while minimizing facility disruption
- Modifying existing structures to accommodate process improvements
- Installing new components within tight spaces inaccessible to prefabricated units
- Performing scheduled maintenance during brief operational windows
Mobile welding services bring certified welders and specialized equipment directly to treatment facilities throughout the Western United States, minimizing transportation delays and facility downtime.
Integration with Existing Infrastructure
Expanding or upgrading water treatment capacity often requires integrating new fabricated components with decades-old infrastructure. This challenge demands fabrication services that can adapt to non-standard dimensions and obsolete connection types.
Experienced fabricators conduct thorough field measurements and create custom solutions that bridge old and new systems. This might involve fabricating transition pieces, custom flanges, or adapter sections that accommodate dimensional discrepancies while maintaining structural integrity and leak-free operation.
The U.S. Environmental Protection Agency’s Water Research page provides comprehensive information on water treatment technologies, helping fabricators stay current with evolving treatment methods and infrastructure requirements.
Specialized Fabrication for Treatment Processes
Different water treatment processes impose unique demands on metal fabrication services. Understanding these specialized requirements ensures that fabricated components support optimal treatment efficiency.
Clarification and Sedimentation Equipment

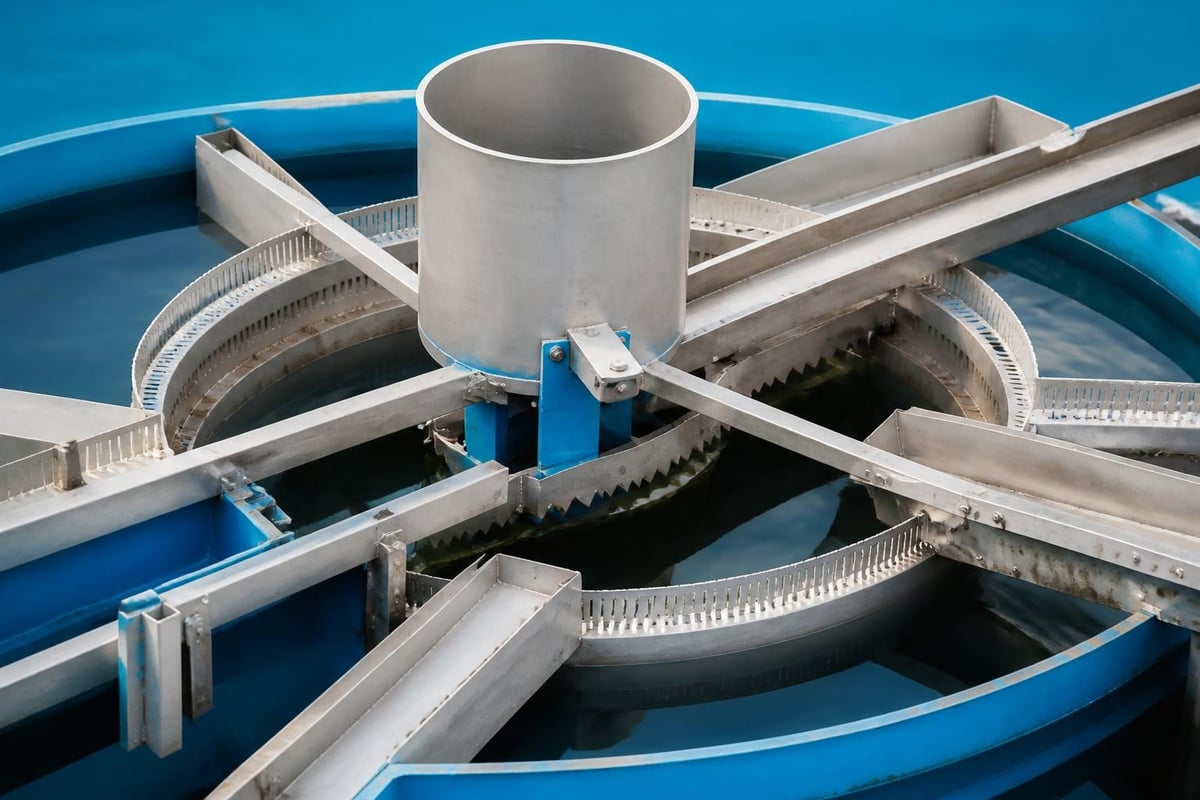

Primary and secondary clarifiers remove suspended solids through gravity settling. The metal components supporting this process include:
Structural elements:
- Center feed wells with baffles to distribute incoming flow evenly
- Rotating sludge scrapers with adjustable blade angles
- Scum baffles and skimmer mechanisms for surface removal
- Effluent launder systems collecting treated water around the tank perimeter
These components require precise fabrication to maintain hydraulic efficiency. Even minor dimensional errors can create short-circuiting flows that reduce treatment effectiveness.
Filtration System Components
Rapid sand filters, membrane bioreactors, and pressure filters all require custom metal fabrication. Filter vessels must withstand internal pressures while providing access for media replacement and cleaning.
Typical fabrication requirements include:
- Pressure vessel construction meeting ASME Boiler and Pressure Vessel Code
- Nozzle placement and reinforcement for inlet, outlet, and drain connections
- Internal distribution headers with precise orifice sizing
- Access manholes with bolted covers and gasket sealing surfaces
- Media retention screens or support grids fabricated from stainless steel
The fabrication tolerances for these components directly affect filter performance, backwash efficiency, and operational costs.
Chemical Feed and Disinfection Systems
Water treatment relies on precise chemical dosing for coagulation, pH adjustment, and disinfection. The metal fabrication supporting these processes must resist aggressive chemical attack while maintaining dimensional accuracy for metering equipment.
Corrosion-Resistant Material Requirements
Chemical feed systems handle concentrated acids, bases, oxidizers, and polymers. Each chemical presents specific corrosion challenges:
| Chemical | pH Range | Recommended Materials | Special Considerations |
|---|---|---|---|
| Chlorine Gas | N/A (dry) | Titanium, Hastelloy | Moisture causes rapid corrosion |
| Sodium Hypochlorite | 11-13 | 316 SS, Titanium | Chloride stress cracking potential |
| Sulfuric Acid | <1 | Alloy 20, Rubber-lined steel | Concentration and temperature dependent |
| Caustic Soda | 13-14 | Carbon steel, 304 SS | Stress corrosion cracking above 140°F |
| Ferric Chloride | 1-3 | Fiberglass, Rubber-lined steel | Highly corrosive to most metals |
Water treatment plant metal fabrication services must select appropriate materials and fabrication methods based on specific chemical exposures and operating conditions.
Containment and Safety Systems
Secondary containment systems protect against chemical spills and leaks. Fabricated containment basins must hold 110% of the largest tank volume while resisting chemical attack from contained substances.
Ventilation systems require custom ductwork fabricated from materials compatible with chemical vapors. Mounting brackets, support structures, and access platforms complete the chemical feed system infrastructure.
Quality Assurance and Testing Protocols
Ensuring fabricated components meet specifications requires comprehensive quality control throughout the fabrication process. Professional water treatment plant metal fabrication services implement testing protocols that verify performance before installation.
Non-Destructive Testing Methods
Quality verification without damaging components allows 100% inspection of critical welds and assemblies:
- Visual inspection follows AWS standards for weld profile, spatter, and surface defects
- Liquid penetrant testing reveals surface-breaking cracks invisible to the naked eye
- Magnetic particle testing identifies subsurface defects in ferromagnetic materials
- Radiographic testing produces permanent records of internal weld quality
- Ultrasonic testing measures material thickness and detects internal discontinuities
- Hydrostatic testing verifies pressure vessel integrity under controlled conditions
Documentation of these inspections becomes part of the permanent facility record, supporting regulatory compliance and future maintenance planning.
Dimensional Verification and Fit-Up
Complex assemblies require precise dimensional control to ensure proper fit-up during installation. Modern fabrication shops utilize coordinate measuring machines (CMM) and laser scanning technology to verify that fabricated components match engineering drawings.
This precision prevents costly field modifications and ensures that rotating equipment aligns properly with drive mechanisms. For projects involving multiple fabricated components, trial assembly in the shop identifies fit-up issues before shipping to the job site.
Project Management and Delivery Logistics
Successful water treatment projects require coordination between engineers, fabricators, installers, and facility operators. Professional fabrication services provide project management support that keeps complex installations on schedule and within budget.
Engineering Support and Design Collaboration
Value engineering during the design phase can reduce costs while improving performance. Experienced fabricators review engineering drawings and offer suggestions based on practical fabrication and installation considerations.
Common value engineering improvements include:
- Modifying weld joint designs to reduce labor while maintaining strength
- Suggesting material substitutions that offer equivalent performance at lower cost
- Redesigning assemblies for easier field installation and future maintenance
- Identifying opportunities to shop-fabricate components originally planned for field construction
- Optimizing component sizes to minimize material waste and transportation costs
This collaborative approach benefits from the fabricator's practical experience with similar projects.
Transportation and Installation Coordination
Large water treatment components often exceed standard shipping dimensions, requiring specialized transportation and routing. Professional fabrication services coordinate oversized load permits, route surveys, and escort vehicles.
Installation planning considers crane access, laydown areas, and sequencing of component placement. For facilities with limited space or ongoing operations, detailed logistics planning minimizes disruption while ensuring safe installation procedures.
Maintenance and Long-Term Performance
The relationship between water treatment facilities and fabrication services extends beyond initial construction. Ongoing maintenance support and component refurbishment contribute to long-term facility performance.
Preventive Maintenance Programs
Regular inspection identifies wear patterns and corrosion before failures occur. Fabrication partners can provide maintenance services including:
- Weld overlay repair of worn scraper blades and mechanical components
- Recoating of structural steel showing corrosion development
- Replacement of corroded sections while preserving serviceable portions
- Upgrades incorporating improved materials or designs based on operational experience
Establishing maintenance relationships with fabrication partners who understand the original construction facilitates efficient repairs and modifications.
Component Refurbishment and Upgrades
As treatment processes evolve or regulations change, existing equipment may require modification. Water treatment plant metal fabrication services can retrofit existing tanks with new internals, modify piping layouts to accommodate additional treatment steps, or upgrade structural components to support increased loads.
Refurbishment often provides better value than complete replacement, extending the service life of major infrastructure components while incorporating modern improvements. For those seeking comprehensive support, reaching out through the contact page ensures access to experienced professionals who understand both fabrication and field service requirements.
Environmental and Sustainability Considerations
Modern water treatment plant metal fabrication services increasingly focus on sustainability, both in fabrication processes and in supporting environmentally responsible treatment operations.
Sustainable Fabrication Practices
Responsible fabrication shops implement practices that minimize environmental impact:
- Recycling scrap metal and minimizing material waste through optimized cutting patterns
- Using water-based cutting fluids and environmentally friendly welding consumables
- Implementing dust collection and fume extraction systems protecting worker health and air quality
- Selecting energy-efficient equipment and optimizing production schedules to reduce energy consumption
- Properly managing hazardous waste from grinding, coating, and surface preparation operations
These practices align with the environmental mission of water treatment facilities while demonstrating corporate responsibility.
Supporting Advanced Treatment Technologies
Emerging treatment technologies addressing PFAS, microplastics, and pharmaceutical contaminants require innovative fabrication approaches. Advanced oxidation systems, membrane filtration arrays, and granular activated carbon contactors all demand specialized metal fabrication that supports cutting-edge treatment processes.
Fabricators who stay current with treatment technology developments can provide better support for facilities implementing advanced treatment methods. This expertise proves particularly valuable when dealing with novel processes lacking established design standards.
Professional water treatment plant metal fabrication services combine technical expertise, quality assurance, and regulatory knowledge to deliver components that support reliable facility operation for decades. From initial design consultation through installation and ongoing maintenance, experienced fabrication partners become valuable long-term assets for treatment facilities. LTJ Industrial Services brings comprehensive welding, fabrication, and machining capabilities to water treatment projects throughout the Western United States, delivering high-quality solutions backed by field service support and technical expertise that helps facilities maintain regulatory compliance while optimizing operational efficiency.
