Modern industrial operations demand precision, reliability, and versatility in metal joining processes. Whether you're working in the recycling industry, aggregate processing, or oil and gas sector, understanding and applying the right welding techniques can mean the difference between project success and costly failures. Selecting appropriate welding methods based on material types, environmental conditions, and structural requirements ensures structural integrity while optimizing production efficiency. For commercial and industrial manufacturing throughout the Western United States, mastering these fundamental skills remains essential for maintaining competitive operations.
Understanding Core Welding Techniques
The foundation of quality fabrication rests on understanding fundamental welding processes. Each method offers distinct advantages depending on material thickness, position, and environmental factors.
MIG (Metal Inert Gas) welding has become the workhorse of industrial fabrication due to its speed and versatility. This semi-automatic process feeds continuous wire electrode through a welding gun while shielding gas protects the weld pool from contamination. The technique excels in production environments where consistent, repeatable results matter most.
MIG Welding Applications and Parameters
Operators appreciate MIG welding for its relatively shallow learning curve and high deposition rates. The process works effectively on steel, stainless steel, and aluminum when properly configured.
Key parameter considerations include:
- Wire feed speed: Controls deposition rate and bead appearance
- Voltage settings: Affects arc characteristics and penetration depth
- Travel speed: Influences heat input and weld profile
- Shielding gas mixture: Varies based on base metal composition
- Contact tip-to-work distance: Maintains consistent arc length
Industrial applications often require position welding capabilities. MIG techniques adapt well to flat, horizontal, and overhead positions, though vertical applications demand careful parameter adjustments. The comprehensive guides from the American Welding Society provide detailed specifications for optimizing these variables.
| Welding Position | Recommended Wire Speed | Voltage Range | Travel Technique |
|---|---|---|---|
| Flat (1G) | 300-400 IPM | 18-22V | Push or drag |
| Horizontal (2G) | 275-375 IPM | 17-21V | Slight upward angle |
| Vertical (3G) | 200-300 IPM | 16-19V | Uphill progression |
| Overhead (4G) | 225-325 IPM | 17-20V | Controlled puddle |
TIG Welding for Precision Applications
TIG (Tungsten Inert Gas) welding represents the pinnacle of precision and control in manual welding techniques. This process uses a non-consumable tungsten electrode to create the arc while filler metal is added separately.
The technique demands exceptional skill but delivers unmatched quality. Industries requiring critical welds-such as hydraulic systems and pressure vessels-rely on TIG welding for its clean, spatter-free results. The operator controls heat input with a foot pedal or fingertip control, allowing precise manipulation of the weld pool.
Material-Specific TIG Techniques
Different base metals require adapted approaches. Stainless steel benefits from lower amperage and faster travel speeds to prevent carbide precipitation. Aluminum demands AC current to break through oxide layers while maintaining adequate heat input.
Filler rod selection directly impacts weld properties:
- Match filler composition to base metal chemistry
- Consider service environment and stress factors
- Select appropriate rod diameter for joint thickness
- Account for dilution rates in dissimilar metal welding
- Verify compatibility with post-weld heat treatment requirements
Professional welding services throughout the Western region frequently encounter challenging material combinations requiring advanced TIG techniques. The process excels when joining thin-wall tubing, exotic alloys, and components where appearance matters.
Stick Welding for Field Applications
Shielded Metal Arc Welding (SMAW), commonly called stick welding, remains irreplaceable for field repairs and outdoor construction. The electrode's flux coating provides its own shielding, eliminating the need for external gas supplies.
This characteristic makes stick welding ideal for windy conditions and remote locations. Oil and gas operations, mining equipment repair, and structural steel installation all benefit from the technique's portability and versatility.
Electrode selection drives successful outcomes. The AWS classification system designates rod capabilities, with E7018 being the industry standard for structural applications requiring high strength and low hydrogen content.
Field Welding Best Practices
Environmental factors significantly impact stick welding quality. Moisture absorption in electrode coatings compromises weld integrity, necessitating proper storage and reconditioning procedures.
Critical field considerations include:
- Pre-cleaning base metal to remove mill scale, rust, and contaminants
- Maintaining appropriate arc length (typically equal to rod diameter)
- Controlling travel angle and work angle for position welding
- Managing heat input on thick sections to prevent cold lap
- Implementing proper inter-pass temperature control
Companies specializing in industrial machinery refurbishment rely heavily on stick welding techniques for on-site repairs where equipment cannot be moved to shop facilities. The method's tolerance for less-than-perfect conditions makes it invaluable for emergency breakdown situations.
Flux-Cored Arc Welding Advantages
FCAW (Flux-Cored Arc Welding) combines elements of MIG and stick welding, using tubular wire filled with flux compounds. This hybrid approach delivers high deposition rates while offering versatility in gas-shielded and self-shielded configurations.
Self-shielded flux-cored wire generates its own protective atmosphere, enabling outdoor welding without gas cylinders. This capability proves essential for structural steel erection and pipeline construction across the Western United States.
| Wire Type | Shielding Method | Primary Applications | Position Capability |
|---|---|---|---|
| Gas-shielded | External CO2/Argon mix | Heavy fabrication, thick plate | All positions |
| Self-shielded | Internal flux generation | Field construction, outdoor work | Flat, horizontal, overhead |
| Metal-cored | External gas required | High-speed manufacturing | Flat, horizontal |
Optimizing FCAW Parameters
Achieving quality welds with flux-cored techniques requires balancing multiple variables. Wire selection depends on base metal thickness, required mechanical properties, and welding position.
Voltage and wire feed speed work together to control the arc. Higher voltage produces flatter beads with wider penetration patterns, while lower voltage creates more convex profiles with deeper penetration. The relationship between these parameters affects both appearance and structural properties.
Drag angle typically ranges from 10 to 15 degrees, pulling the gun away from the weld puddle. This technique helps slag cover the weld bead properly while maintaining good visibility of the puddle.
Understanding welding codes and standards ensures compliance with industry requirements. These specifications dictate acceptable procedures, qualification testing, and quality assurance measures for various applications.
Advanced Welding Techniques and Automation
Modern manufacturing increasingly incorporates automated and semi-automated welding techniques. Robotic welding systems deliver unprecedented consistency and throughput for high-volume production runs.
These systems excel in repetitive applications where part positioning can be precisely controlled. Automotive manufacturing, heavy equipment production, and structural steel fabrication benefit from robotic implementation. Recent developments in active visual sensing for robotic welding have enhanced seam tracking accuracy and real-time quality monitoring.

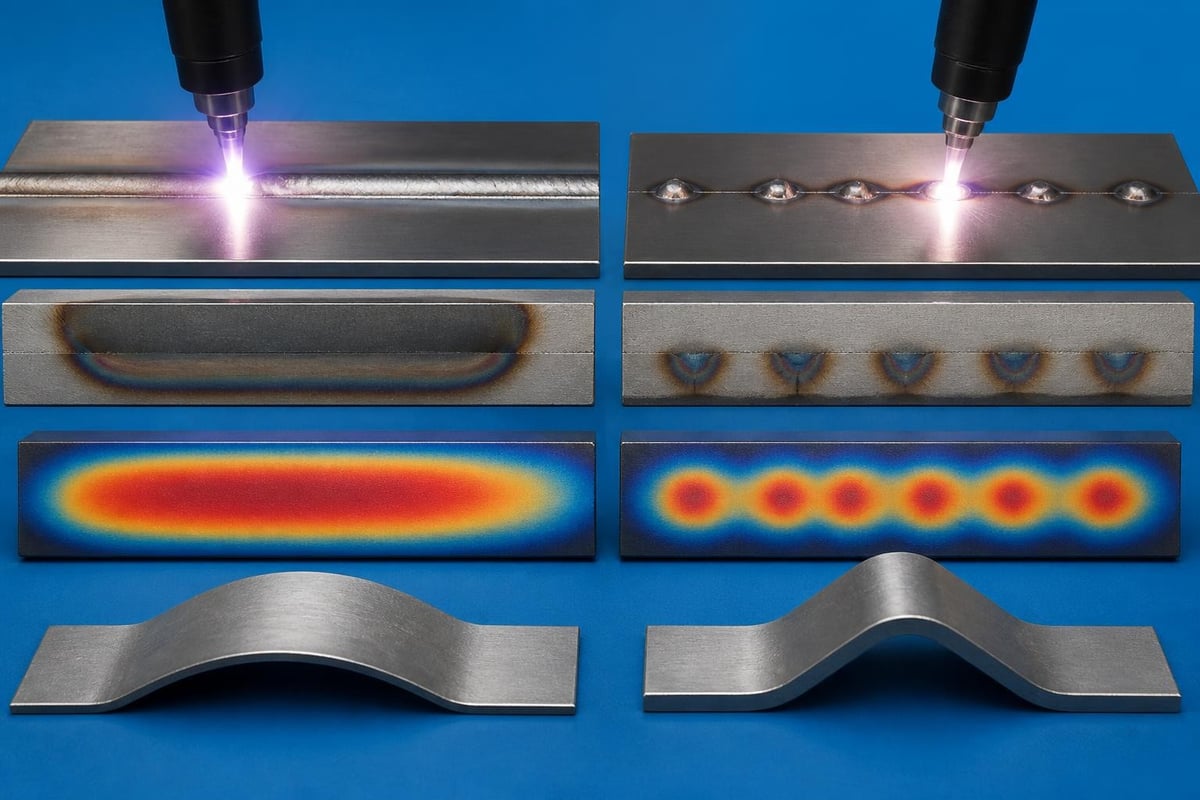

Pulsed Welding Technology
Pulsed MIG and TIG welding represent significant advances in heat input control. These techniques alternate between high peak currents and low background currents, allowing better puddle control and reduced distortion.
Benefits include:
- Improved control on thin materials
- Reduced heat-affected zone
- Better gap bridging capability
- Enhanced out-of-position performance
- Lower overall heat input with maintained penetration
The pulsing action creates a spray-like transfer at lower average currents than traditional spray transfer, expanding the usable parameter window significantly. This technology proves particularly valuable when welding aluminum and stainless steel, where heat distortion presents challenges.
Material Preparation and Joint Design
Proper preparation determines weld quality before the arc even strikes. Surface contamination, joint geometry, and fit-up tolerances all influence final results.
Surface preparation standards vary by process and application severity. Critical pressure vessel welds demand near-white metal cleanliness, while structural applications may accept lighter cleaning. Grinding, wire brushing, and chemical cleaning each serve specific purposes depending on base metal and contaminant types.
Joint Configuration Considerations
Selecting appropriate joint designs balances accessibility, strength requirements, and material economy. Butt joints, fillet welds, corner joints, and lap joints each offer distinct advantages.
Groove preparation depth and angle directly affect:
- Required filler metal volume
- Welding time and labor costs
- Distortion potential
- Achievable penetration
- Overall joint strength
Complete joint penetration welds require careful backside access or backing techniques. Single-sided welding with complete penetration remains one of the most challenging aspects of production welding, often requiring specialized backing systems or consumable inserts.
The welding data standardization efforts from NIST help manufacturers document joint preparation specifications consistently across projects and facilities. This standardization improves quality tracking and facilitates communication between engineering and production teams.
Quality Control and Inspection Methods
Ensuring weld integrity requires systematic quality control throughout the fabrication process. Visual inspection forms the first line of defense, identifying obvious defects like undercut, porosity, and incomplete fusion.
Non-destructive testing (NDT) methods verify internal weld quality without damaging finished components. Radiographic testing, ultrasonic inspection, magnetic particle testing, and dye penetrant examination each detect specific defect types.
| NDT Method | Defect Types Detected | Material Limitations | Typical Applications |
|---|---|---|---|
| Radiography | Internal voids, inclusions | Thickness dependent | Pressure vessels, pipe |
| Ultrasonic | Cracks, lack of fusion | Surface condition critical | Structural steel, thick plate |
| Magnetic Particle | Surface/near-surface cracks | Ferromagnetic only | Welds in carbon steel |
| Dye Penetrant | Surface-breaking defects | Surface must be accessible | Stainless, aluminum |
Implementing Statistical Process Control
Modern quality management applies statistical methods to monitor welding processes and identify trends before they produce defective parts. Tracking key variables like amperage, voltage, travel speed, and wire feed speed reveals process drift.
Qualified welding professionals understand that maintaining tight process control reduces scrap rates and rework costs significantly. Documenting welding parameters creates traceable records essential for quality audits and failure analysis.
Control charts track individual weld parameters across production runs, highlighting when adjustments become necessary. This proactive approach prevents defect accumulation rather than relying solely on post-weld inspection.
Specialized Welding Applications
Certain industries demand specialized welding techniques beyond standard processes. Orbital welding systems create automated, repeatable welds on pipe and tube applications, particularly valuable in pharmaceutical, semiconductor, and food processing industries requiring sanitary conditions.
Friction stir welding joins materials without melting them, using mechanical friction to plasticize metal. This solid-state process works exceptionally well on aluminum alloys that prove challenging with conventional fusion welding.
Underwater and Hyperbaric Welding
Wet welding enables repairs on submerged structures without costly cofferdam construction. Specialized electrodes and techniques compensate for rapid heat dissipation and hydrogen contamination risks. Dry hyperbaric welding chambers provide controlled environments for critical underwater repairs requiring radiographic quality welds.
These specialized applications require extensive training and certification beyond standard welding qualifications. The demanding conditions and safety hazards necessitate experienced personnel and rigorous procedure development.
Training and Workforce Development
Skilled welders remain in high demand throughout industrial sectors. Developing competency requires combining theoretical knowledge with extensive hands-on practice under qualified supervision.
Certification programs validate welder qualifications for specific processes, positions, and material types. AWS, ASME, and API certification standards establish minimum performance criteria for various applications. Companies must maintain current certifications and conduct periodic retesting to ensure continued proficiency.
Emerging technologies like augmented reality welding training systems accelerate skill development by providing real-time feedback without consuming materials. These systems complement traditional training methods, allowing students to practice technique fundamentals before progressing to live welding.
Continuing education keeps welders current with evolving techniques, materials, and safety requirements. New alloy developments, process improvements, and regulatory changes require ongoing professional development throughout a welder's career.
Businesses seeking reliable fabrication support should consider partnering with established providers offering comprehensive capabilities. When you need expert assistance with complex projects, reaching out for professional consultation ensures access to qualified personnel and proven processes.
Mastering appropriate welding techniques for your specific applications ensures structural integrity, operational efficiency, and long-term reliability across industrial manufacturing operations. Whether you need complex fabrication, field repairs, or specialized machining services throughout the Western United States, LTJ Industrial Services delivers the expertise and equipment to handle your most demanding projects. Our experienced team serves the commercial and industrial manufacturing sectors with comprehensive shop and field capabilities designed to keep your operations running efficiently.
