Structural steel fabrication serves as the backbone of modern industrial construction, transforming raw steel materials into precise components that support buildings, bridges, manufacturing facilities, and energy infrastructure across industries. For manufacturers in sectors like oil and gas, recycling, and aggregate processing, understanding the fabrication process ensures projects meet rigorous engineering specifications while maintaining safety and cost efficiency. This comprehensive approach to steel fabrication combines traditional craftsmanship with advanced technology, delivering solutions that withstand demanding operational environments throughout the Western United States and beyond.
The Fundamentals of Structural Steel Fabrication
Structural steel fabrication encompasses multiple specialized processes that convert raw steel into engineered components ready for installation. The fabrication cycle begins with detailed engineering drawings and specifications, which guide every subsequent operation from material selection through final assembly.

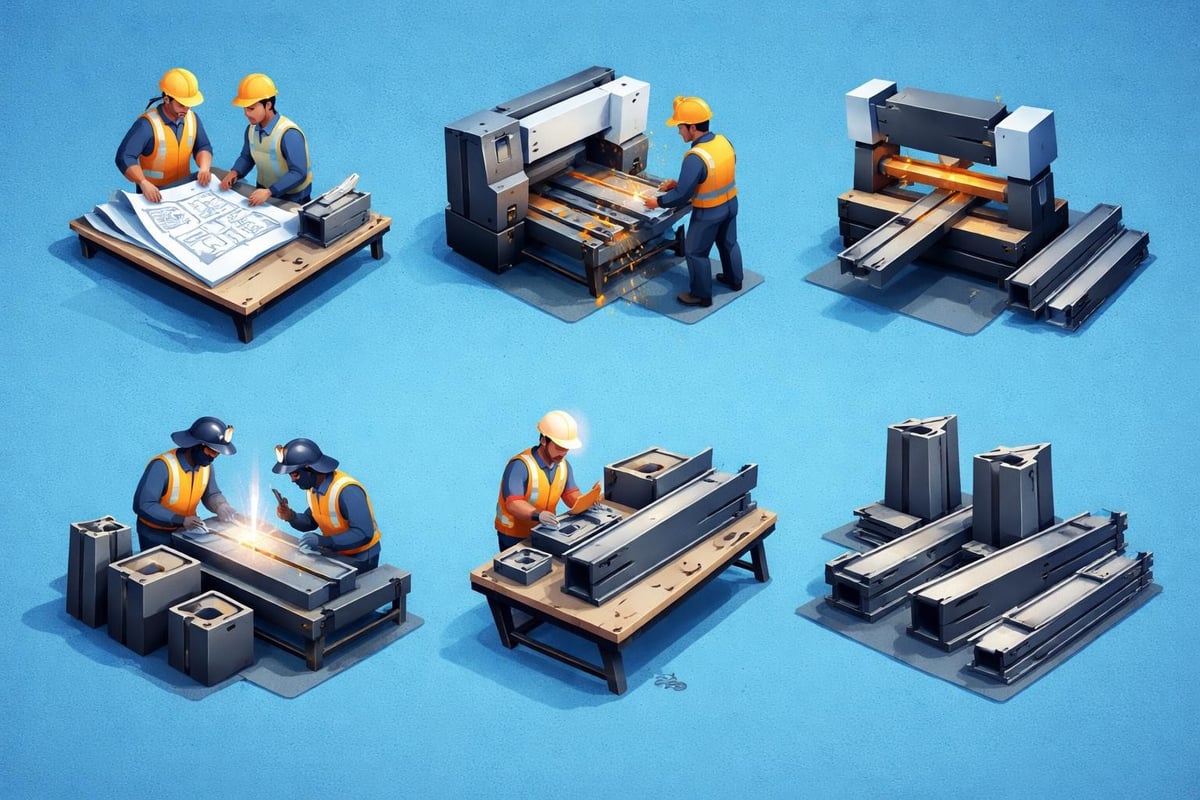

Core Fabrication Processes
The transformation of structural steel involves several distinct yet interconnected operations:
- Cutting: Precise dimensioning using plasma torches, laser cutters, or saws
- Drilling: Creating bolt holes and connection points with CNC machinery
- Bending: Forming angles and curves using press brakes and rolling equipment
- Welding: Joining components through various techniques including MIG, TIG, and stick welding
- Assembly: Fitting and connecting multiple pieces into complete structural units
- Surface preparation: Cleaning, grinding, and finishing for protective coatings
Each process requires specialized equipment and skilled operators who understand material properties, tolerances, and quality standards. Custom welding services demand particular expertise when working with diverse steel grades and thicknesses.
Material Selection and Preparation Standards
Choosing appropriate steel grades represents a critical decision that impacts structural integrity, fabrication efficiency, and long-term performance. Carbon steel remains the most common choice for structural applications, with specific grades selected based on strength requirements, environmental conditions, and weldability considerations.
Steel Grade Classifications
| Grade Type | Yield Strength | Common Applications | Weldability |
|---|---|---|---|
| A36 | 36,000 psi | General structural components | Excellent |
| A572-50 | 50,000 psi | High-strength buildings, bridges | Very Good |
| A588 | 50,000 psi | Weathering steel for outdoor exposure | Good |
| A992 | 50,000 psi | Wide-flange beams, columns | Excellent |
Material preparation involves more than selecting the correct grade. Proper storage prevents corrosion and contamination, while accurate material tracking ensures traceability throughout the fabrication process. Best practices in structural steel fabrication emphasize systematic material handling from receipt through final delivery.
Inspection of incoming materials verifies mill certifications, dimensions, and surface conditions before fabrication begins. This quality control step prevents downstream issues and ensures compliance with project specifications.
Advanced Fabrication Technologies
Modern structural steel fabrication integrates computer-aided design (CAD) and computer-aided manufacturing (CAM) systems that enhance precision while reducing production time. These technologies enable fabricators to optimize material usage, minimize waste, and maintain consistent quality across complex projects.
Digital Manufacturing Tools
CNC (Computer Numerical Control) equipment has revolutionized the accuracy and repeatability of fabrication operations. Plasma and laser cutting systems produce clean edges with minimal thermal distortion, while CNC drilling machines create perfectly positioned bolt holes that ensure proper alignment during field assembly.
Building Information Modeling (BIM) allows fabricators to identify potential conflicts before cutting begins. Three-dimensional models reveal interference issues, connection complexities, and sequencing challenges that traditional two-dimensional drawings might obscure.
Automated welding systems deliver consistent penetration and bead appearance on repetitive joints, though skilled welders remain essential for complex connections and ASME code welding services for pressure piping applications. The combination of automation and craftsmanship optimizes both productivity and quality.
Quality Control and Inspection Protocols
Rigorous inspection procedures throughout the fabrication process ensure structural steel components meet engineering specifications and safety standards. Quality control begins with material verification and continues through every fabrication stage until final acceptance.
Multi-Stage Inspection Approach
Dimensional Verification: Measuring cut pieces, drilled holes, and bent sections confirms compliance with tolerance requirements specified in project drawings.
Weld Quality Assessment: Visual inspection identifies surface defects, while non-destructive testing methods including ultrasonic, magnetic particle, and radiographic examination detect internal flaws in critical connections.
Fit-Up Evaluation: Trial assembly in the fabrication shop reveals alignment issues before components ship to the construction site, preventing costly field modifications.
Surface Condition Review: Checking for mill scale removal, rust, and contamination ensures proper adhesion of protective coatings that extend service life.
Documentation of all inspection activities creates a quality record that demonstrates compliance with project specifications and industry standards. This traceability proves particularly important for industrial manufacturing projects subject to regulatory oversight.
Safety Standards in Fabrication Operations
Safety protocols form the foundation of responsible structural steel fabrication practices. The inherent hazards of working with heavy materials, powerful equipment, and high-temperature processes demand comprehensive safety programs that protect workers while maintaining productivity.
Essential Safety Measures
- Personal protective equipment including hard hats, safety glasses, welding helmets, and steel-toed boots
- Machine guarding on all cutting, drilling, and forming equipment
- Proper ventilation systems to remove welding fumes and grinding dust
- Fire prevention procedures including hot work permits and fire extinguisher placement
- Material handling protocols using cranes, hoists, and lifting equipment rated for the loads
Safety tips for steel fabrication projects emphasize continuous training and hazard recognition as ongoing commitments rather than one-time activities. Regular safety meetings address emerging concerns and reinforce best practices across the workforce.
Compliance with OSHA (Occupational Safety and Health Administration) regulations represents the minimum acceptable standard, while leading fabricators often exceed these requirements through voluntary safety programs and continuous improvement initiatives.
Field Installation Considerations
Successful structural steel fabrication extends beyond shop operations to include detailed planning for field installation. Fabricators must consider transportation logistics, site access constraints, and erection sequences when designing and producing components.
Shop-to-Field Coordination
Components fabricated in controlled shop environments must fit together precisely when assembled on-site under less controlled conditions. This requires careful attention to:
- Connection design that accommodates normal construction tolerances
- Piece marking systems that clearly identify each component’s location
- Shipping sequences that deliver materials in installation order
- Protective measures preventing damage during transportation and storage
- Erection drawings showing bolt-up sequences and temporary bracing requirements
Industrial fabrication services that understand field realities design connections with adequate adjustment capability while maintaining structural integrity. Slotted holes, shim allowances, and adjustable connections accommodate the inevitable variations that occur during construction.
Pre-fabrication meetings between shop personnel, project engineers, and field erectors identify potential installation challenges before fabrication begins. This collaborative approach prevents issues that could delay construction or require expensive modifications.
Specialized Applications Across Industries
Different industrial sectors impose unique requirements on structural steel fabrication. Understanding these specific demands ensures fabricated components perform reliably in their intended service environments.
Industry-Specific Requirements
Oil and Gas: Corrosive environments and high temperatures require special material grades and protective coatings. Pressure vessels and piping systems must meet stringent code requirements enforced through testing cold-formed steel structures and rigorous inspection protocols.
Aggregate and Mining: Heavy impact loads and abrasive materials demand wear-resistant steel grades and reinforced construction. Equipment frames and chutes require robust welding and regular maintenance access.
Recycling Facilities: Structural components supporting conveyors and processing equipment must accommodate dynamic loads and vibration while resisting corrosion from varied waste streams.
Manufacturing Plants: Precision alignment of machinery foundations and support structures requires tight fabrication tolerances and careful installation procedures.
The structural steel fabrication process adapts to these varied applications through material selection, connection design, and quality control measures tailored to each industry’s specific challenges.
Welding Techniques and Certifications
Welding represents perhaps the most critical fabrication process, permanently joining steel components to create structural integrity. The quality of welded connections directly impacts safety, durability, and performance throughout a structure’s service life.
Common Welding Methods
| Method | Characteristics | Best Applications | Limitations |
|---|---|---|---|
| SMAW (Stick) | Versatile, portable, works outdoors | Field repairs, thick sections | Slower than other methods |
| GMAW (MIG) | High deposition rate, clean welds | Shop fabrication, thin to medium steel | Requires gas shield, indoor use |
| GTAW (TIG) | Precise control, high quality | Critical connections, exotic alloys | Slower process, higher skill level |
| FCAW (Flux-Core) | Good penetration, works in wind | Outdoor construction, heavy sections | Creates more spatter and slag |
Welder qualification represents another essential element of quality assurance. Certified welders demonstrate proficiency through standardized tests that verify their ability to produce sound welds meeting code requirements. Welding and fabrication services maintain rosters of qualified welders holding current certifications for the specific processes and materials they’ll encounter.
Weld procedure specifications (WPS) document the exact parameters including amperage, voltage, travel speed, and filler metal for each joint configuration. Following these qualified procedures ensures consistent weld quality across multiple welders and projects.
Environmental and Regulatory Compliance
Structural steel fabrication operates within a framework of environmental regulations and industry standards that protect workers, communities, and natural resources. Responsible fabricators implement comprehensive compliance programs addressing air quality, waste management, and worker safety.
Key Compliance Areas
Air Quality Management: Welding fumes, grinding dust, and coating vapors require capture and filtration systems that meet EPA and state air quality standards. Proper ventilation protects worker health while preventing environmental releases.
Waste Handling: Steel scrap, used abrasives, and coating materials must be managed according to their classification as recyclable materials or regulated wastes. Tracking and documentation demonstrate proper disposal or recycling.
Stormwater Protection: Outdoor fabrication and storage areas implement measures preventing contaminated runoff from reaching surface waters. This includes covered storage, secondary containment, and regular inspections.
Noise Control: Heavy equipment and impact operations generate sound levels requiring hearing protection for workers and potentially affecting neighboring properties.
Staying current with best practices for safe and efficient steel structure installation ensures fabrication operations meet both regulatory requirements and industry leadership standards.
Project Planning and Estimating
Accurate project planning establishes realistic timelines and budgets that enable successful structural steel fabrication. Comprehensive estimates consider material costs, labor hours, equipment requirements, and overhead allocation while accounting for project-specific complexities.
Estimating Considerations
Experienced estimators evaluate multiple factors when pricing fabrication work:
- Material quantities with appropriate waste factors for each cutting method
- Fabrication hours based on component complexity and required tolerances
- Special processes including heat treating, galvanizing, or specialized coatings
- Quality control activities proportional to project specifications and inspection requirements
- Shop capacity and scheduling to meet delivery deadlines
- Transportation logistics for oversized or heavy components
Detailed review of project drawings and specifications reveals scope elements that significantly impact cost. Connection complexity, tight tolerances, and unusual materials require additional fabrication time and skilled labor. Manufacturing and machining capabilities influence whether projects proceed entirely in-house or require outsourcing certain operations.
Value engineering during the estimating phase can identify opportunities to optimize designs for fabrication efficiency without compromising structural performance. Early collaboration between fabricators and designers often yields cost savings through standardized connections, simplified details, and efficient material usage.
Maintenance and Repair Considerations
Long-term structural performance depends on periodic maintenance and timely repairs when damage occurs. Fabricators who understand service requirements design connections and details that facilitate inspection and maintenance activities.
Design for Maintainability
Access provisions for bolted connections allow future replacement of damaged members without extensive dismantling of surrounding structure.
Corrosion protection systems including galvanizing, paint, or weathering steel selection match exposure conditions and maintenance capabilities.
Repair-friendly details avoid configurations that trap moisture or debris, reducing corrosion initiation and progression.
Standardized components enable replacement with readily available materials rather than custom fabrication of obsolete sections.
When structural damage requires repair, heavy equipment welding expertise becomes essential for restoring load-carrying capacity while maintaining metallurgical properties. Proper repair procedures address both visible damage and potential hidden defects that could compromise safety.
Continuous Improvement in Fabrication
Leading structural steel fabricators embrace continuous improvement methodologies that enhance quality, efficiency, and customer satisfaction. This commitment to excellence drives innovation in processes, equipment, and workforce development.
Improvement Strategies
Lean manufacturing principles eliminate waste in material handling, reduce setup times, and optimize workflow through the fabrication shop. These efficiencies lower costs while improving delivery performance.
Technology adoption brings new capabilities in automation, measurement, and quality control. Evaluating emerging technologies identifies opportunities to enhance competitive position.
Workforce development through ongoing training maintains current certifications while building new skills in advanced processes and equipment. Skilled welders represent valuable assets whose capabilities expand through structured development programs.
Customer feedback systems capture lessons learned from completed projects, informing improvements in estimating accuracy, fabrication processes, and communication protocols.
Safety culture enhancement recognizes that zero injuries represent an achievable goal through sustained commitment, hazard elimination, and employee engagement.
Regular review of key performance indicators including on-time delivery, first-pass quality rates, and safety statistics provides objective data for measuring improvement initiatives. Structural steel fabrication methods and best practices evolve as fabricators learn from both successes and challenges.
Supply Chain Management
Reliable material supply represents a critical success factor for structural steel fabrication operations. Disruptions in steel availability, price volatility, and transportation constraints can significantly impact project schedules and profitability.
Strategic Sourcing Approaches
Building relationships with multiple steel suppliers provides flexibility when market conditions tighten or specific grades face availability constraints. Long-term partnerships often yield preferential pricing and allocation during supply shortages.
Inventory management balances carrying costs against the risk of production delays from material stockouts. Common grades of plate, structural shapes, and bar stock maintained in inventory enable quick turnaround on smaller projects while reducing lead times for larger work.
Just-in-time delivery for project-specific materials reduces storage requirements and cash tied up in inventory. However, this approach demands reliable suppliers and accurate scheduling to prevent fabrication delays.
Material traceability systems track each piece from mill certification through fabrication and installation. This documentation proves essential for quality assurance and regulatory compliance, particularly in industries like oil and gas where material pedigree requirements are stringent.
Future Trends in Steel Fabrication
The structural steel fabrication industry continues evolving through technological advancement, changing market demands, and environmental considerations. Forward-looking fabricators position themselves to capitalize on emerging opportunities while adapting to new challenges.
Emerging Developments
Advanced materials including high-strength low-alloy steels and corrosion-resistant grades expand design possibilities while potentially reducing structural weight and material costs.
Robotic automation extends beyond repetitive welding tasks to include complex assembly operations, improving consistency while addressing skilled labor shortages.
Additive manufacturing for steel components remains in early development but shows promise for producing complex geometries impossible with conventional fabrication methods.
Sustainability initiatives emphasize recycled steel content, energy-efficient processes, and designs optimized for eventual deconstruction and material recovery.
Digital integration through cloud-based project management, real-time production monitoring, and seamless data exchange between design and fabrication systems enhances coordination and reduces errors.
Fabricators serving Colorado industrial and manufacturing sectors must balance investment in new capabilities against the practical realities of project requirements and customer expectations. Selective adoption of proven technologies delivers competitive advantages while managing implementation risks.
Structural steel fabrication combines precision engineering, skilled craftsmanship, and rigorous quality control to deliver components that form the foundation of modern industrial infrastructure. Success in this demanding field requires comprehensive capabilities spanning material expertise, advanced equipment, qualified personnel, and unwavering commitment to safety and quality. Whether your project involves new construction, equipment fabrication, or structural repairs, LTJ Industrial Services brings decades of experience serving the oil and gas, recycling, aggregate, and manufacturing industries throughout the Western United States with shop and field solutions tailored to your specific requirements.
