Custom skid fabrication for oil and gas industry represents a critical capability that enables operators to deploy complex processing equipment quickly and efficiently across diverse field locations. These modular systems integrate pumps, compressors, separators, metering equipment, and control systems onto a single structural frame, creating transportable units that reduce installation time and minimize on-site construction risks. For fabrication shops serving the energy sector throughout the Western United States, delivering precision-engineered skid systems requires a comprehensive understanding of industry specifications, material selection, welding standards, and the operational demands of upstream, midstream, and downstream applications.
Understanding Skid Systems in Energy Operations
Skid-mounted equipment assemblies serve multiple functions across oil and gas operations, from wellhead production facilities to pipeline metering stations and refinery support systems. These pre-fabricated units arrive at job sites with equipment already mounted, piped, wired, and tested, dramatically reducing field installation time compared to stick-built alternatives.

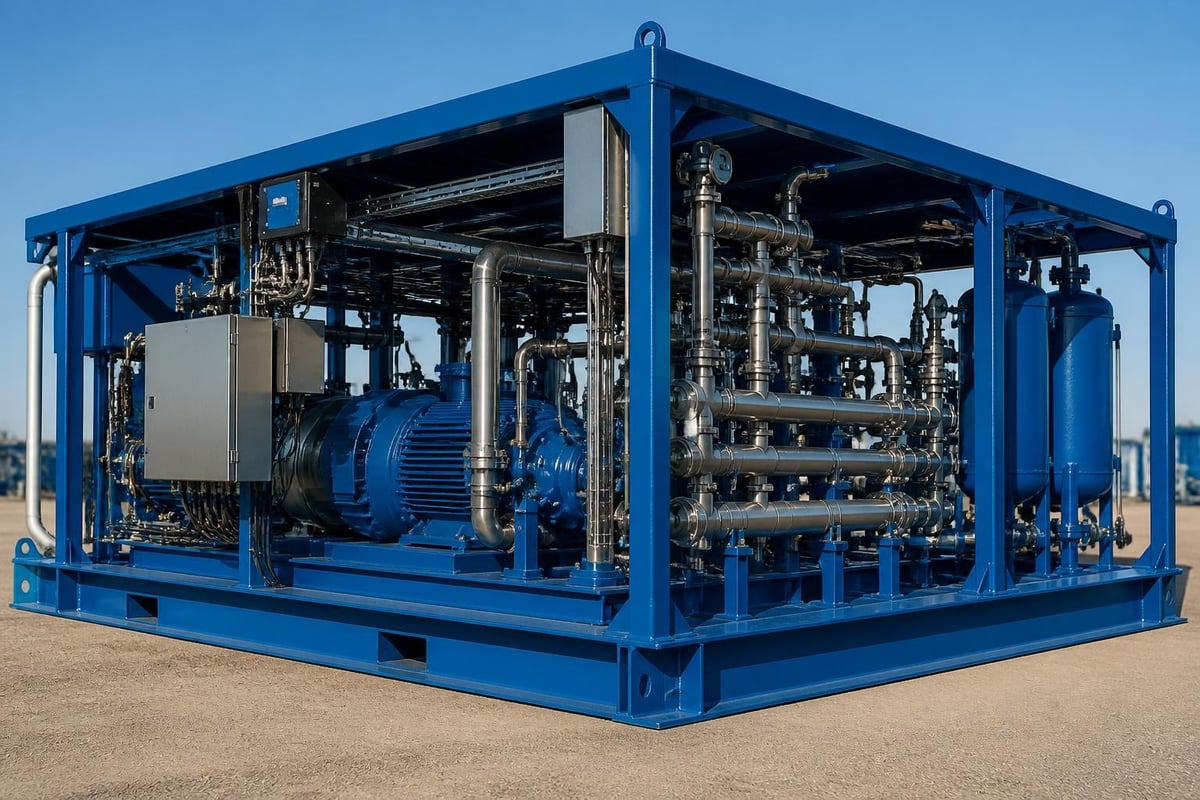

Core Components and System Integration
A typical skid system combines several critical elements that must work together seamlessly. The structural base frame provides the foundation, engineered to withstand transportation loads, operational vibrations, and environmental stresses. Equipment mounting points require precise positioning to maintain alignment during transport and operation.
Key integrated components include:
- Process equipment (pumps, compressors, separators, heat exchangers)
- Piping systems with appropriate materials and pressure ratings
- Instrumentation and control panels
- Safety and shutdown systems
- Electrical components and junction boxes
- Fire protection equipment where required
The integration challenge involves coordinating multiple trades-structural fabrication, pipe fitting, electrical installation, and instrumentation-within tight dimensional constraints. Custom skid fabrication for oil and gas industry demands meticulous planning to ensure all systems fit within transportation limits while maintaining accessibility for maintenance and operation.
Transportation and Dimensional Constraints
Transportation requirements fundamentally shape skid design. Road transport limits typically restrict width to 12 feet, height to 13.5 feet, and length to 53 feet without special permits. Weight considerations vary by transport route and delivery method, whether by truck, rail, or barge.
These constraints drive design decisions at every level. Equipment must be positioned to distribute weight appropriately, center of gravity calculations must account for both transport and operational configurations, and lifting points require careful engineering for safe handling. The extended compressor drag skids project demonstrates how proven frame concepts adapt to new equipment while maintaining transportability and structural performance in harsh conditions.
Engineering Requirements and Standards Compliance
Custom skid fabrication for oil and gas industry operates within a rigorous framework of codes, standards, and specifications that govern every aspect of design and construction. Compliance ensures safety, reliability, and operator acceptance while facilitating permitting and insurance requirements.
Applicable Codes and Industry Specifications
Multiple organizations publish standards that govern skid fabrication. The American Petroleum Institute (API) provides specifications for equipment and systems common in oil and gas operations. ASME codes cover pressure vessels, piping, and structural components. National and international electrical codes govern wiring and control systems.
| Standard/Code | Application Area | Key Requirements |
|---|---|---|
| API 650/653 | Storage tanks | Material specs, welding procedures, inspection |
| ASME B31.3 | Process piping | Design pressure, material selection, testing |
| NFPA 70 | Electrical systems | Hazardous area classification, grounding |
| ASME Section VIII | Pressure vessels | Design calculations, fabrication standards |
| API 14C | Safety systems | Analysis methods, device specifications |
The IOGP specification S-737 provides minimum technical requirements for deluge skids used in fire protection systems, covering procurement data, quality standards, and information requirements essential for design and safety compliance. Industry efforts toward standardization continue to evolve, with IOGP’s joint industry programmes working to reduce specification variation and improve delivery certainty across upstream operations.
Material Selection and Environmental Considerations
Material choices significantly impact skid performance and longevity. Carbon steel provides cost-effective strength for structural components and standard process applications. Stainless steel offers corrosion resistance for sour gas service or corrosive environments. Specialty alloys address specific chemical exposures or extreme temperature conditions.
Environmental factors influence material specifications throughout the Western United States. High-altitude operations experience different atmospheric conditions than sea-level facilities. Desert environments present challenges from temperature extremes and dust exposure. Mountainous locations may encounter severe winter conditions requiring additional weatherproofing and heating considerations.
Coating systems protect steel components from corrosion, with specification depending on service environment. Three-coat systems with primer, intermediate, and topcoat layers provide long-term protection in harsh conditions. Special coatings address chemical exposures or high-temperature applications.

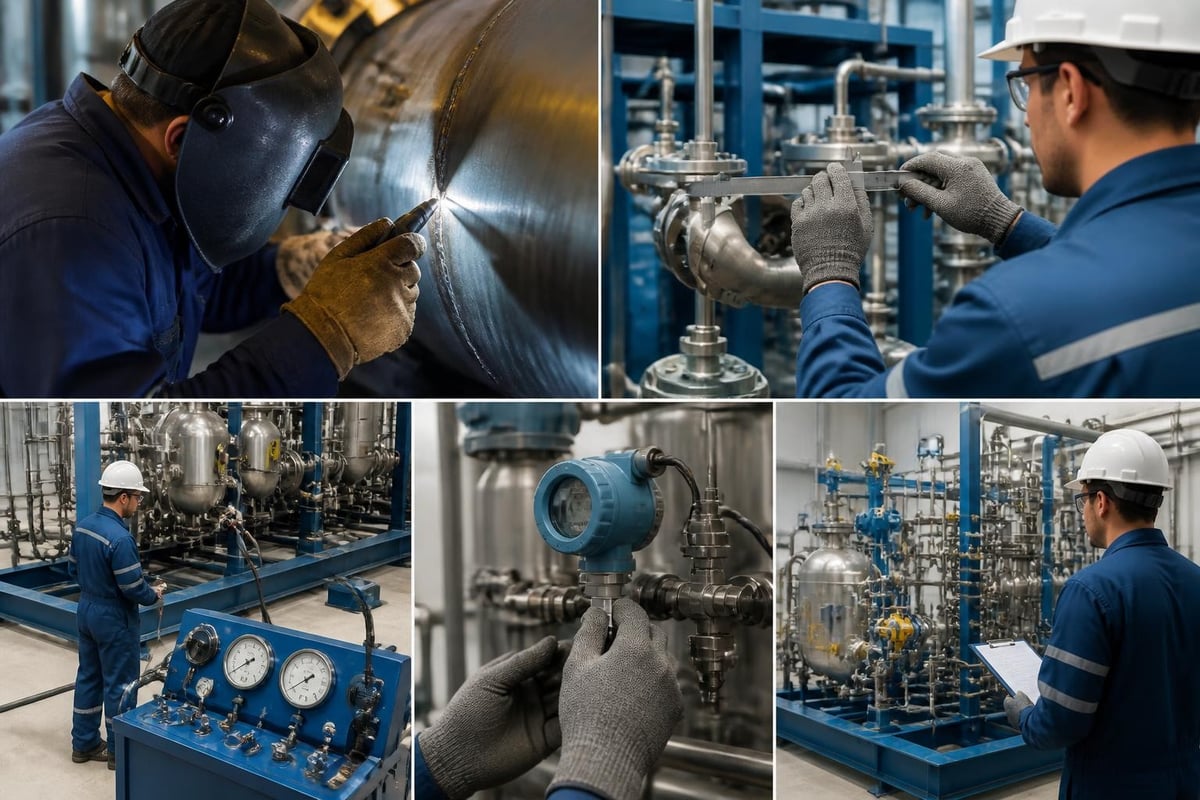

Fabrication Process and Quality Control
The manufacturing sequence for custom skid fabrication for oil and gas industry follows a structured progression from engineering through final testing. Each phase requires coordination between engineering, fabrication, and quality departments to ensure specifications are met and documented.
Design and Engineering Phase
Detailed engineering begins with customer specifications and operational requirements. Process flow diagrams define system functionality, while piping and instrumentation diagrams (P&IDs) detail every valve, instrument, and connection. Three-dimensional modeling software allows interference checking and optimization before fabrication begins.
Engineering deliverables typically include:
- General arrangement drawings showing overall dimensions and equipment locations
- Structural calculations and frame design drawings
- Piping isometric drawings with bill of materials
- Electrical schematics and panel layouts
- Instrument loop diagrams and control logic
- Lifting and transportation drawings
- Operation and maintenance documentation
This documentation phase ensures all stakeholders-customer, fabricator, equipment suppliers, and field installation teams-work from consistent, coordinated information. Changes during fabrication require formal revision control to maintain document accuracy.
Welding and Structural Fabrication
Structural frame fabrication establishes the foundation for all subsequent work. Base beams require precise squaring and levelness to prevent alignment problems during equipment installation. Welding procedures must follow qualified welding procedure specifications (WPS) appropriate for materials and service conditions.
Modern fabrication facilities increasingly employ robotic welding systems to improve consistency and productivity. Robotic skid welding applications demonstrate significant advances in throughput and quality, particularly for repetitive welds on structural components and pipe supports. Automated systems provide superior arc consistency and reduce heat input variation, minimizing distortion concerns.
Visual inspection, dimensional checks, and non-destructive testing verify weld quality. Magnetic particle testing, liquid penetrant testing, or radiographic examination may be specified depending on service severity and code requirements. Documentation of all inspections and tests becomes part of the permanent quality record delivered with the completed skid.
Piping and Equipment Installation
Once the structural frame passes inspection, equipment mounting and piping installation proceed in coordinated sequence. Heavy equipment installs first, with precise positioning verified before final welding of mounting brackets. Piping layout follows engineered isometric drawings, with fit-up and alignment critical for proper system function.
Pipe fabrication requires attention to material specifications, wall thickness requirements, and end preparation standards. Beveling for welded joints must meet specified angles and land widths. Threading for screwed connections follows ASME B1.20.1 standards. Flanged connections require proper gasket selection and bolt torqueing sequences.
| Piping Component | Critical Specifications | Testing Requirements |
|---|---|---|
| Carbon steel pipe | Schedule, material grade, end prep | Hydrostatic test, visual inspection |
| Stainless pipe | Alloy type, surface finish, cleanliness | Pressure test, PMI verification |
| Valves | Pressure class, material, actuation type | Seat tightness, operation verification |
| Flanges | Rating, facing type, material | Dimensional check, PMI |
| Fittings | Schedule match, radius, material | Visual inspection, fit-up verification |
Support spacing follows code requirements to prevent sagging and vibration. Allowance for thermal expansion prevents stress concentrations. Proper sloping ensures drainage where required.

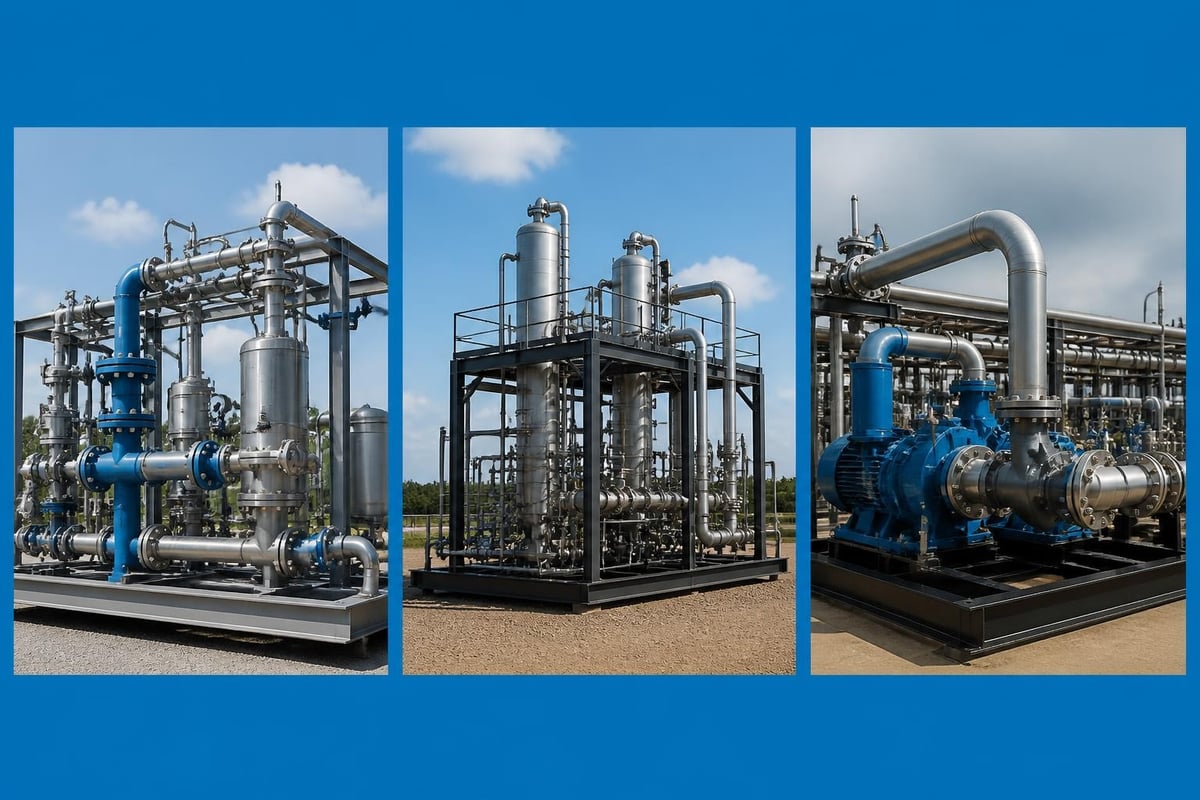

Specialized Skid Applications
Custom skid fabrication for oil and gas industry encompasses diverse system types, each with unique engineering requirements and operational considerations. Understanding these specialized applications enables fabricators to deliver optimized solutions that address specific customer needs.
Metering and Measurement Skids
Custody transfer and allocation metering systems require exceptional accuracy and regulatory compliance. These skids integrate flow meters, flow computers, analyzers, and sampling systems to measure product quantity and quality for commercial transactions. The fiscal metering systems comparison between modular meter skids and stick-built installations addresses measurement accuracy, applicable standards including API and ISO requirements, and economic considerations important when fabricating skids for custody transfer applications.
Metering skids demand precise pipe sizing to maintain proper flow velocity and profile. Straight pipe runs upstream and downstream of meters must meet manufacturer specifications to ensure accuracy. Instrumentation calibration requires traceable standards and documented procedures. Temperature and pressure compensation systems correct measured volumes to standard conditions.
Production and Processing Skids
Well production facilities utilize test separators, production separators, heater treaters, and free water knockouts mounted on skid bases for mobility as production patterns change. These systems handle multiphase flow (oil, gas, water) under pressure, requiring careful attention to vessel design, pressure relief systems, and liquid level control.
Common production skid configurations include:
- Three-phase test separators with metering
- Wellhead control and choke systems
- Enhanced oil recovery chemical injection
- Produced water treatment systems
- Gas dehydration and conditioning
Process equipment selection balances performance requirements against weight and dimensional constraints. Horizontal vessels often provide better transportability than vertical configurations. Modular design allows capacity expansion through parallel skid installation.
Compression and Pumping Systems
Compressor skids boost gas pressure for gathering systems, gas lift operations, or vapor recovery. These units integrate the prime mover (engine or motor), compressor, cooling systems, lubrication systems, and controls. Vibration isolation protects the structural frame and piping from equipment-induced stresses.
Pump skids serve applications from crude oil transfer to injection water delivery to chemical dosing. Multiple pumps provide redundancy and turndown capability. Suction stabilization prevents cavitation, while discharge dampening reduces pressure pulsation. Variable frequency drives enable flow control while reducing power consumption.
Testing, Commissioning, and Documentation
Comprehensive testing validates that custom skid fabrication for oil and gas industry meets all performance specifications before shipment. Testing protocols depend on system type and customer requirements but typically progress through mechanical completion, pressure testing, and functional verification.
Pressure Testing and Leak Detection
Hydrostatic testing proves the integrity of pressure-containing components. Test pressure typically ranges from 1.5 to 2 times the design pressure, held for specified duration while inspecting for leaks or deformation. Pneumatic testing using air or nitrogen may substitute where water damage concerns exist, though safety protocols require additional precautions due to stored energy risks.
Testing procedures document pressure values, hold times, temperature conditions, and inspection results. Any identified leaks require repair and retest. Successful completion receives formal documentation with date, witnesses, and test conditions recorded.
Functional Testing and Systems Integration
Once pressure integrity is confirmed, functional testing verifies that all systems operate as designed. Control systems receive power and communication connections. Instrumentation calibration is verified against known standards. Safety systems undergo trip testing to confirm proper shutdown sequences.
Functional test verification includes:
- Motor rotation direction and amp draw
- Valve stroke time and position indication
- Instrument signal verification and calibration
- Control logic sequence testing
- Safety shutdown system verification
- Communication protocol testing
- Human-machine interface functionality
Testing may utilize temporary utilities or simulate process conditions through blanked connections and test signals. Detailed procedures guide technicians through systematic verification of every component and system.
Quality Documentation Packages
Final documentation provides operators with comprehensive information for installation, operation, and maintenance. Quality books compile material certifications, weld maps, inspection reports, and test records. Operation manuals describe system functionality, startup procedures, and routine maintenance requirements.
The ISO 22504:2025 standard defines requirements for pig trap systems-key skid-mounted components in pipeline operations-covering design and manufacturing specifications including valves, instrumentation, and layout details pertinent to comprehensive skid engineering and documentation.
Documentation requirements often include:
| Document Type | Contents | Purpose |
|---|---|---|
| Certifications | Material test reports, weld records, inspection reports | Quality verification, code compliance |
| Drawings | As-built GA, P&ID, electrical schematics | Installation reference, maintenance planning |
| Manuals | Operation procedures, maintenance schedules, parts lists | Operator training, ongoing maintenance |
| Test Records | Pressure tests, calibration reports, functional tests | Performance verification, warranty support |
| Spare Parts | Recommended spares list, vendor contacts | Maintenance planning, downtime prevention |
Field Installation and Ongoing Support
Successful field installation depends on proper preparation and coordination between the fabrication shop and installation contractor. Site preparation requirements include foundation specifications, utility connections, and access for equipment delivery and placement.
Site Preparation and Lifting Procedures
Foundation design must accommodate skid loads during operation and account for soil conditions at the installation site. Concrete pads provide stable, level mounting surfaces with embedded anchor bolts positioned to match skid base holes. Grouting under the skid base eliminates voids and ensures uniform load distribution.
Lifting and setting operations require engineered rigging plans that identify lift points, rigging equipment specifications, and crane capacity requirements. The skid center of gravity must be accurately known to prevent tipping during lifts. Weather conditions and ground stability affect safe lifting operations.
Connection to Existing Infrastructure
Field connections integrate the skid into existing facility infrastructure. Process piping connections require field welding or flanged joints with proper gasket selection and bolt torqueing. Electrical connections must maintain hazardous area ratings and provide proper grounding. Instrument and control signals connect to distributed control systems or SCADA networks.
Commissioning in the field verifies that all connections function properly and the integrated system performs as designed. Startup procedures test each subsystem before introducing process fluids. Performance verification confirms flow rates, pressures, temperatures, and control responses meet specifications.
Maintenance Access and Long-Term Serviceability
Design considerations during custom skid fabrication for oil and gas industry should anticipate maintenance requirements over the equipment lifecycle. Adequate clearance around pumps, valves, and instruments facilitates routine servicing. Removable panels provide access to internal components. Lifting provisions enable equipment replacement without disassembling the entire skid.
Preventive maintenance programs extend equipment life and prevent unexpected failures. Lubrication schedules, filter replacement intervals, and inspection frequencies depend on manufacturer recommendations and operating conditions. Detailed maintenance records track component history and support predictive maintenance strategies.
Regional Considerations for Western United States Operations
Operating conditions across the Western United States present unique challenges for custom skid fabrication for oil and gas industry applications. Elevation changes from sea level to over 10,000 feet affect equipment performance. Temperature extremes from desert heat to mountain cold require appropriate material selection and system design.
Altitude and Temperature Effects
High-altitude operations reduce air density, affecting combustion engines and air-cooled heat exchangers. Derating factors must be applied to engines and compressors. Electrical equipment may require special cooling considerations or reduced ratings. Instrumentation calibration should account for reduced atmospheric pressure.
Temperature swings in mountain environments require heat tracing for freeze protection and insulation to maintain process temperatures. Electrical heat tracing systems with temperature controllers prevent freezing in stagnant lines. Insulation thickness calculations must consider minimum ambient temperatures and wind exposure.
Remote Location Challenges
Many oil and gas operations occur in remote areas with limited infrastructure and support services. Skid design should maximize reliability and minimize maintenance requirements. Redundant components for critical systems prevent single-point failures. Robust construction withstands harsh environmental conditions and extended service intervals.
Remote monitoring capabilities enable operators to track performance and diagnose issues without site visits. Telemetry systems transmit operational data via satellite or cellular networks. Automated alerts notify operators of abnormal conditions requiring attention. Advanced diagnostics reduce troubleshooting time when service visits become necessary.
Custom skid fabrication for oil and gas industry delivers the modular, reliable, and transportable solutions that energy operations demand throughout the Western United States. From initial engineering through final testing and field support, precision fabrication ensures these critical systems perform safely and efficiently in the most demanding environments. LTJ Industrial Services brings comprehensive metal fabrication, welding, and machining capabilities to custom skid projects, combining technical expertise with quality craftsmanship to deliver solutions that meet the exacting standards of oil and gas operations. Contact LTJ Industrial Services today to discuss your custom skid fabrication requirements and discover how our shop and field services can support your energy infrastructure projects.
