Custom metal machining represents a critical capability for industrial and commercial manufacturing operations throughout the Western United States. From precision components in oil and gas applications to specialized parts for aggregate processing equipment, the ability to transform raw metal stock into exact specifications drives operational efficiency. Understanding the processes, materials, tooling considerations, and quality requirements enables manufacturers to make informed decisions when sourcing machining services for their unique project requirements.
Understanding Custom Metal Machining Processes
Custom metal machining encompasses a diverse range of subtractive manufacturing techniques designed to remove material from workpieces and create precise geometries. Unlike standard production runs, custom machining addresses unique specifications, one-off parts, or small batch productions that require specialized attention.
CNC Milling and Turning Operations
Computer Numerical Control (CNC) technology has revolutionized precision machining by enabling repeatable accuracy and complex geometries. CNC milling machines use rotating cutting tools to remove material from stationary workpieces, ideal for creating flat surfaces, slots, pockets, and complex three-dimensional features.
Turning operations involve rotating the workpiece while a stationary cutting tool shapes cylindrical or conical surfaces. This process excels at producing shafts, pins, bushings, and threaded components with tight tolerances.
Key advantages of CNC machining include:
- Repeatability across multiple identical parts
- Capability to work with detailed CAD specifications
- Reduced human error through automated tool paths
- Flexibility to switch between different part designs quickly
- Integration with quality inspection systems
Conventional Machining Techniques
While CNC dominates modern manufacturing, conventional manual machining still serves essential roles in custom fabrication. Manual mills, lathes, and drill presses offer cost-effective solutions for prototyping, repair work, and situations where programming time exceeds actual machining time.
These traditional methods provide machinists with tactile feedback and immediate adjustment capability, particularly valuable when working with challenging materials or adapting to unexpected workpiece variations. The manufacturing and machining services offered by experienced shops often combine both CNC and conventional approaches based on project requirements.
Material Selection for Custom Machining Projects
Material choice fundamentally impacts machining strategies, tooling requirements, cycle times, and finished part performance. Different metals present distinct challenges and advantages when subjected to cutting operations.
Common Machining Materials and Their Properties
| Material Category | Machinability Rating | Key Applications | Primary Considerations |
|---|---|---|---|
| Aluminum Alloys | Excellent | Aerospace, general manufacturing | High speeds, chip management, thermal expansion |
| Carbon Steel | Good | Structural components, general purpose | Tool wear, work hardening, heat generation |
| Stainless Steel | Moderate | Corrosive environments, food processing | Work hardening, heat generation, tool selection |
| Titanium | Challenging | Aerospace, medical, high-performance | Low thermal conductivity, chemical reactivity, specialized tooling |
The trade-offs between machinability, strength, corrosion resistance, and cost require careful evaluation when specifying materials for custom parts. Aluminum alloys machine easily with high material removal rates, while stainless steels demand slower speeds, robust tooling, and adequate cooling to manage work hardening.
Specialized Alloys and Difficult Metals
Industries like oil and gas, recycling, and aggregate processing frequently require components from materials engineered for extreme conditions. Nickel-based superalloys, hardened tool steels, and exotic alloys resist wear, corrosion, and high temperatures but present significant machining challenges.
Recent research on non-conventional machining methods for difficult alloys demonstrates alternative approaches when traditional cutting proves inefficient. Electrical Discharge Machining (EDM), Wire EDM, and Electrochemical Machining (ECM) offer solutions for materials that resist conventional cutting tools.
Understanding material behavior under cutting forces helps machinists select appropriate:
- Cutting speeds and feed rates
- Tool materials and geometries
- Coolant types and delivery methods
- Workholding strategies to prevent distortion
Tooling Considerations and Cutting Technology
Tool selection directly impacts surface finish quality, dimensional accuracy, production efficiency, and overall project costs in custom metal machining operations. The relationship between workpiece material, cutting tool material, and machining parameters determines success or failure.
Cutting Tool Materials and Coatings
Modern machining relies on advanced tool materials engineered to withstand extreme temperatures, pressures, and abrasive wear. High-speed steel (HSS) remains economical for general-purpose work, while carbide tools offer superior performance at higher cutting speeds.
Cutting tool coatings extend tool life significantly by reducing friction and heat generation. Titanium nitride (TiN), titanium carbonitride (TiCN), and aluminum titanium nitride (AlTiN) coatings each provide specific advantages depending on workpiece material and cutting conditions. Understanding cutting tool materials and their suitability for various machining operations enables better tooling decisions.
Polycrystalline diamond (PCD) and cubic boron nitride (CBN) tools represent premium solutions for machining abrasive non-ferrous materials and hardened steels respectively, justifying higher initial costs through extended tool life and superior finishes.
Tool Geometry and Application Matching
Beyond material selection, tool geometry matching proves essential:
- Rake angle controls cutting force and chip formation
- Relief angle prevents rubbing and heat buildup
- Helix angle influences chip evacuation and cutting smoothness
- Nose radius affects surface finish and tool strength
- Edge preparation (sharp, honed, or chamfered) optimizes tool life for specific materials
Custom machining projects benefit from experienced machinists who understand these relationships and adjust tooling strategies accordingly rather than relying solely on manufacturer recommendations.
Quality Control and Precision Measurement
Achieving specified tolerances and surface finishes requires rigorous quality control throughout custom metal machining operations. Measurement technology and inspection protocols ensure finished parts meet exacting requirements.

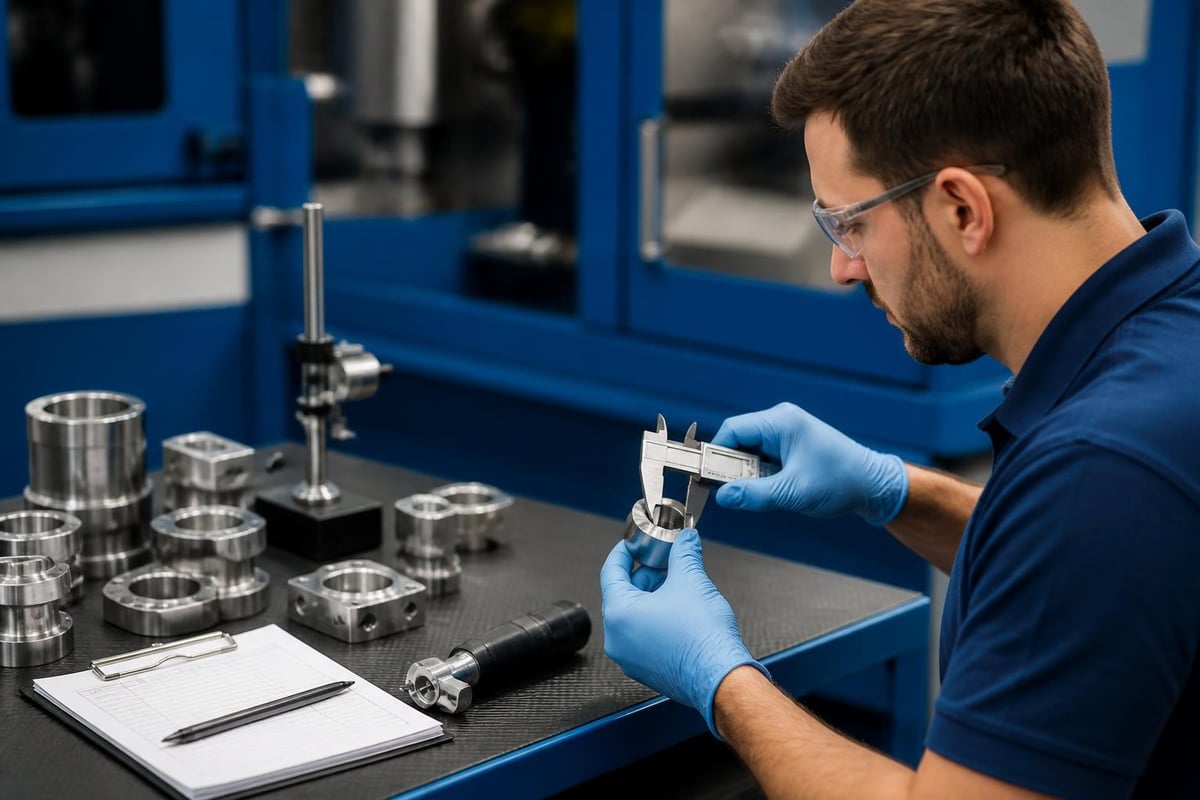

Dimensional Inspection Methods
Quality control begins with proper workpiece setup and continues through in-process checks and final inspection. Common measurement tools include:
- Micrometers for precise external and internal diameter measurements
- Calipers for general-purpose dimensional verification
- Height gauges for vertical dimension and feature location checks
- Coordinate Measuring Machines (CMM) for complex three-dimensional inspection
- Optical comparators for profile verification and small feature measurement
Many custom metal fabrication operations integrate inspection throughout production rather than relying solely on final checks, catching deviations early when corrections cost less.
Surface Finish Specifications
Surface finish significantly impacts part performance, particularly for components subject to fatigue loading, sealing requirements, or corrosive environments. Roughness average (Ra) values quantify surface texture, with lower numbers indicating smoother finishes.
Machining processes produce characteristic surface patterns:
- Turning creates circumferential lay patterns
- Milling generates directional tool marks
- Grinding achieves fine, multidirectional finishes
- Honing produces crossed patterns for oil retention
Understanding how surface finishing options interact with base materials helps specify appropriate finishes for functional requirements versus unnecessary precision that increases costs.
Safety Standards and Machine Guarding
Custom metal machining operations present significant hazards requiring comprehensive safety programs and proper machine guarding. Compliance with federal regulations and industry standards protects workers while avoiding costly citations and work stoppages.
Regulatory Compliance Requirements
The Occupational Safety and Health Administration (OSHA) establishes baseline requirements for machine guarding and metalworking safety that apply to all machining operations. These regulations mandate guards for point-of-operation hazards, rotating components, and chip/coolant spray containment.
Beyond OSHA requirements, the ANSI B11 series of safety standards provides detailed specifications for different machine types, including CNC machining centers, milling machines, and turning machines. These voluntary standards represent industry best practices often incorporated into workplace safety programs.
Key safety considerations for custom machining include:
- Interlocked enclosures preventing access during operation
- Emergency stop controls positioned for quick operator access
- Proper chip containment and disposal systems
- Personal protective equipment requirements
- Lockout/tagout procedures for maintenance and setup
- Adequate lighting and housekeeping protocols
Risk Assessment and Hazard Mitigation
Each custom machining project requires evaluation for unique hazards based on workpiece size, material properties, machine capabilities, and operator exposure. Large, heavy components demand specialized lifting equipment and securing methods. Materials producing toxic dust or fumes need appropriate ventilation systems.
Training programs ensure machinists understand machine-specific hazards and proper operating procedures. Documentation of safety protocols, regular equipment inspection, and incident investigation create a culture of continuous safety improvement essential for industrial manufacturing operations.

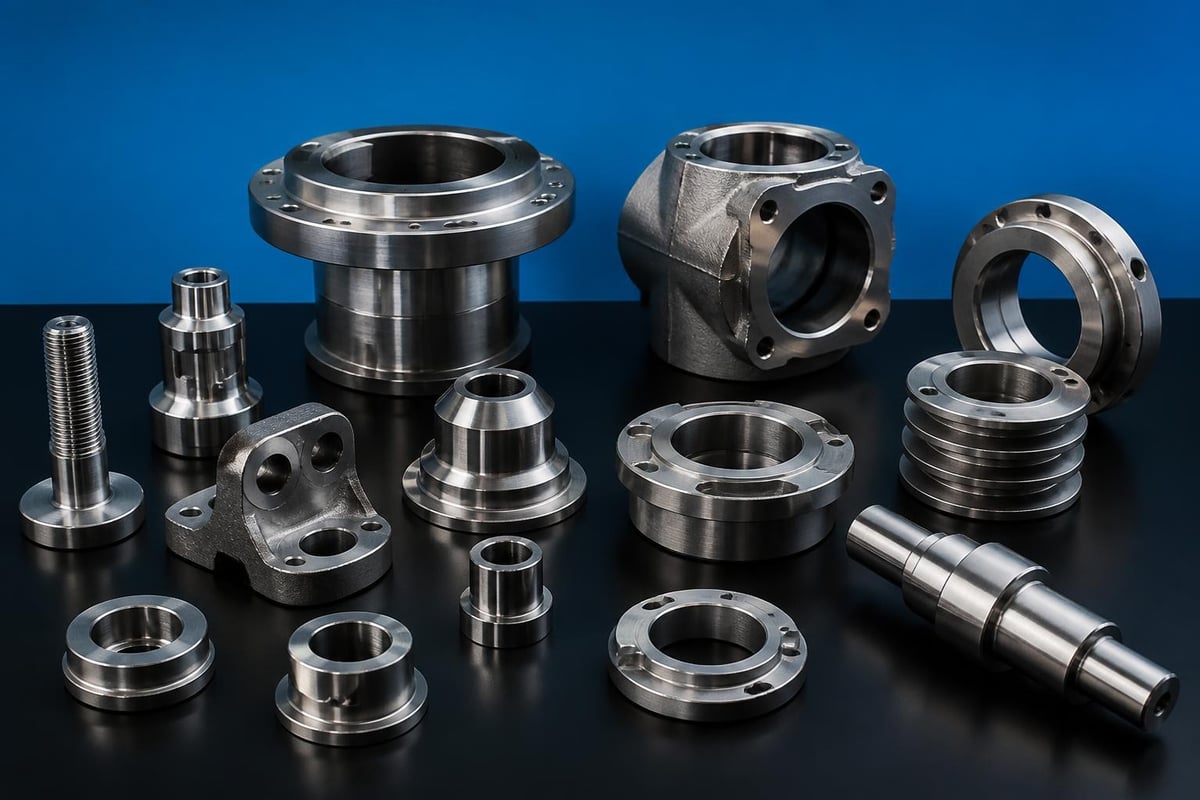

Applications Across Industrial Sectors
Custom metal machining serves diverse industries throughout the Western United States, each with unique requirements and performance expectations. Understanding sector-specific needs enables better communication between manufacturers and machining service providers.
Oil and Gas Industry Applications
The oil and gas sector demands precision components capable of withstanding extreme pressures, temperatures, and corrosive environments. Custom machining produces critical parts including:
- Valve bodies and trim components
- Pump shafts and impellers
- Drill collar modifications
- Wellhead equipment repairs
- Custom flanges and fittings
These applications often require exotic materials like Inconel, Monel, or duplex stainless steels, presenting significant machining challenges. Specialized oil and gas fabrication capabilities combine machining with welding and assembly for complete solutions.
Aggregate and Recycling Equipment
Heavy industrial equipment processing rock, concrete, and recycled materials subjects components to severe abrasive wear and impact loading. Custom machining supports these operations through:
- Replacement wear parts matching OEM specifications
- Crusher jaw plates with precise profiles
- Conveyor shafts and bearing housings
- Screen frames and mounting brackets
- Hydraulic cylinder repairs and modifications
The ability to reverse-engineer worn components and produce replacements quickly minimizes costly equipment downtime. Many aggregate operations maintain relationships with local machining providers for rapid response to unexpected failures.
Manufacturing and Processing Equipment
General manufacturing facilities require custom machined components for production equipment maintenance, process improvements, and new equipment installations. These projects range from simple bushings and spacers to complex multi-feature components integrating with automated systems.
Custom machining capabilities become particularly valuable when:
- OEM replacement parts prove unavailable or prohibitively expensive
- Equipment modifications improve productivity or safety
- Prototype components require testing before production tooling investment
- Specialized fixtures and tooling support unique manufacturing processes
Post-Machining Finishing and Treatment
While precision machining creates accurate dimensions, additional finishing operations often enhance performance, appearance, and longevity. The integration of machining and finishing determines final component characteristics.
Surface Treatment Options
Different finishing methods address specific functional requirements beyond basic machining:
| Finishing Method | Primary Benefits | Typical Applications | Cost Considerations |
|---|---|---|---|
| Anodizing | Corrosion resistance, wear resistance, aesthetics | Aluminum components, architectural | Moderate, batch processing efficient |
| Plating (Chrome, Nickel) | Hardness, corrosion protection, dimension restoration | Hydraulic cylinders, shafts | Moderate to high, thickness control critical |
| Passivation | Corrosion resistance for stainless | Medical, food processing equipment | Low, chemical process |
| Powder Coating | Corrosion, chemical resistance, color | Structural components, housings | Low to moderate, requires coating thickness consideration |
The interaction between finishing methods and base materials affects dimensional tolerances, requiring coordination between machining and finishing specifications. Components requiring post-finish machining need additional stock allowance, while critical dimensions may require finish-then-machine sequences.
Heat Treatment Integration
Some custom machining projects require heat treatment either before or after machining operations. Case hardening, through hardening, stress relieving, and tempering alter material properties but introduce dimensional changes requiring careful process planning.
Pre-machining heat treatment provides stable material for precision operations but increases tool wear. Post-machining heat treatment achieves optimal material properties but may cause warping or dimensional changes requiring finish grinding or secondary operations.
Capacity Planning and Lead Time Management
Understanding machining capacity, scheduling realities, and lead time drivers helps customers plan projects effectively and set realistic expectations for delivery.
Factors Affecting Production Timing
Multiple variables influence how quickly custom machining projects progress from design to delivered parts:
- Material availability and lead times from suppliers
- Machine scheduling and capacity utilization
- Complexity of part geometry and required operations
- Tooling requirements (standard versus custom-ground tools)
- Inspection and quality documentation needs
- Finishing operations and outsourced processes
Rush projects often prove feasible through overtime scheduling, priority placement, or utilizing less-optimal but available machines. However, true capacity constraints cannot be overcome without compromising quality or existing commitments.
Communication and Project Management
Successful custom machining relationships depend on clear communication throughout the project lifecycle. Detailed drawings with complete specifications prevent misunderstandings. Early involvement of machining expertise during design phases often identifies cost-saving opportunities or potential manufacturing challenges.
Regular progress updates maintain alignment between customer expectations and actual production status. Documentation of material certifications, inspection results, and dimensional reports provides traceability increasingly demanded by quality management systems.
The case studies from experienced providers demonstrate how collaborative approaches solve complex manufacturing challenges through combined welding, fabrication, and machining capabilities.
Equipment Investment and Technology Advancement
The custom metal machining landscape continues evolving through technological advancement, automation integration, and expanding capabilities. Understanding these trends helps manufacturers evaluate potential partners and future capabilities.
Modern Machining Center Capabilities
Contemporary machining centers integrate multiple operations within single setups, reducing handling time and improving accuracy. Five-axis machines enable complex geometries previously requiring multiple setups or specialized fixtures. High-speed machining reduces cycle times for aluminum and non-ferrous materials while improving surface finishes.
Automation through robotic loading, pallet systems, and extended tool magazines enables lights-out manufacturing for appropriate applications. These capabilities shift economic breakpoints, making smaller batch sizes cost-effective compared to historical manual operations.
Software and Digital Integration
Computer-Aided Manufacturing (CAM) software continues advancing with improved tool path optimization, simulation capabilities, and integration with design systems. Digital twins enable virtual verification before committing to actual cutting, reducing setup time and material waste.
Data collection and analysis provide insights into machine utilization, tool life optimization, and process improvement opportunities. Predictive maintenance systems reduce unexpected downtime through monitoring of vibration, temperature, and power consumption patterns.
Custom metal machining combines precision technology, material expertise, and skilled craftsmanship to deliver components meeting exacting industrial requirements. The integration of appropriate processes, tooling, quality control, and finishing creates solutions supporting critical operations across manufacturing sectors. Whether your project demands one-off prototype development, small batch production, or complex multi-operation components, LTJ Industrial Services provides comprehensive machining, welding, and fabrication capabilities throughout the Western United States, delivering the precision and reliability your operations require.
