Selecting the right commercial welding machine represents a critical investment decision for businesses engaged in metal fabrication, manufacturing, and industrial services. These powerful tools serve as the backbone of operations across recycling facilities, aggregate processing plants, oil and gas infrastructure, and countless other industrial applications throughout the Western United States. Understanding the technical specifications, safety requirements, and operational considerations ensures that manufacturers acquire equipment capable of delivering consistent, high-quality welds while meeting stringent regulatory standards and maximizing productivity.
Understanding Commercial Welding Machine Classifications
A commercial welding machine differs significantly from consumer-grade equipment in terms of power output, duty cycle, and durability. Industrial applications demand machines capable of continuous operation under demanding conditions, often running for extended periods without overheating or performance degradation.
Key classification factors include:
- Power source type (AC, DC, or combination)
- Welding process capability (MIG, TIG, Stick, Flux-Cored)
- Amperage range and maximum output
- Duty cycle rating at various amperage levels
- Input voltage requirements (single-phase vs. three-phase)
Manufacturing facilities typically require three-phase machines rated for 200 to 600 amps, depending on the materials and thicknesses being joined. For structural steel fabrication, machines with 300-400 amp capacity handle most projects efficiently, while specialized applications like pipe welding or heavy equipment repair may necessitate higher ratings.

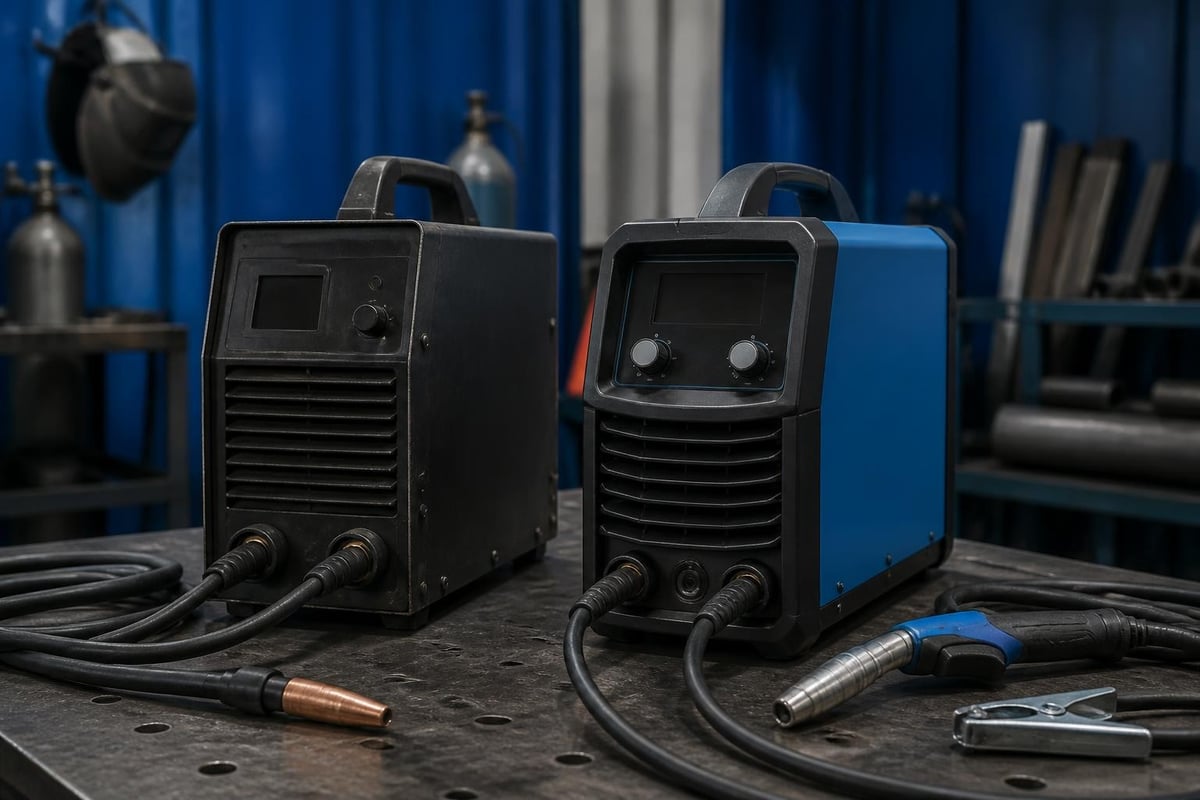

Power Source Configurations
The power source configuration determines both operational versatility and cost-effectiveness. Transformer-based machines offer reliability and simplicity but lack the advanced features found in inverter technology. Modern inverter-based commercial welding machines provide superior arc control, reduced weight, and improved energy efficiency, making them increasingly popular in custom metal fabrication operations.
Inverter technology has revolutionized the commercial welding landscape. These machines convert incoming AC power to DC, then use high-frequency switching to create the desired output characteristics. The result is precise arc control, reduced spatter, and the ability to weld challenging materials with greater ease.
Critical Specifications for Industrial Applications
When evaluating a commercial welding machine, several technical specifications directly impact performance, reliability, and suitability for specific applications. These parameters must align with your operational requirements and the materials you regularly process.
| Specification | Light Industrial | Medium Industrial | Heavy Industrial |
|---|---|---|---|
| Amperage Range | 150-250A | 250-400A | 400-600A+ |
| Duty Cycle @ Max | 30-40% | 60-80% | 100% |
| Input Power | 208/230V | 230/460V 3-phase | 460/575V 3-phase |
| Typical Applications | Light fabrication, maintenance | Structural steel, general manufacturing | Shipbuilding, pressure vessels, heavy equipment |
Duty Cycle Considerations
Duty cycle represents the percentage of a 10-minute period that a machine can operate at a specific amperage without overheating. A commercial welding machine rated at 60% duty cycle at 300 amps can weld continuously for six minutes before requiring a four-minute cooling period.
For industrial welding operations, this specification proves crucial. Production environments running multiple shifts benefit from machines rated at 80-100% duty cycle at their typical operating amperage, even if this means purchasing equipment with higher maximum output than immediately necessary.
Professional fabricators understand that running a machine consistently near its maximum rated output accelerates wear and reduces longevity. Selecting equipment with capacity exceeding regular operational demands extends service life and provides flexibility for unexpected heavy-duty projects.
Process Versatility and Multi-Process Capabilities
Multi-process commercial welding machines offer significant advantages for facilities handling diverse projects. These units perform MIG, TIG, and Stick welding functions within a single platform, reducing equipment investment costs and floor space requirements.
Benefits of multi-process capability:
- Reduced capital expenditure on multiple dedicated machines
- Simplified operator training across processes
- Consistent arc performance characteristics across welding methods
- Smaller equipment footprint in the shop
- Enhanced flexibility for varied project requirements
Companies providing metal fabrication and welding services across multiple industries particularly value this versatility, as it enables them to respond quickly to changing customer demands without equipment limitations.

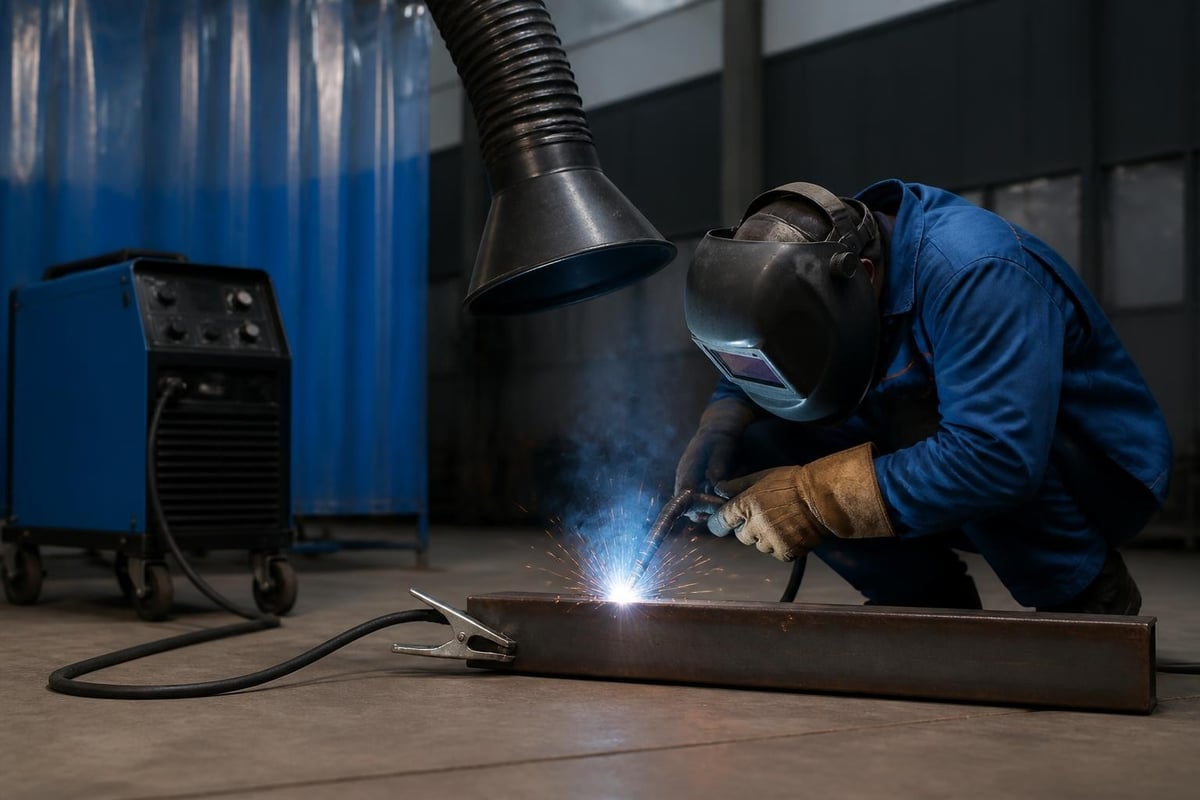

Safety Standards and Regulatory Compliance
Operating commercial welding equipment requires strict adherence to established safety protocols and regulatory standards. OSHA’s welding, cutting, and brazing standards provide comprehensive requirements for safe equipment operation, proper ventilation, fire prevention, and personal protective equipment.
Compliance begins with proper equipment selection. Commercial welding machines must meet specific electrical safety standards, including appropriate grounding, overcurrent protection, and emergency disconnect capabilities. The Code of Federal Regulations on arc welding details these requirements, specifying installation, maintenance, and operational protocols.
Health and Safety Protocols
Beyond equipment standards, operators must understand and implement comprehensive safety measures. Health and safety considerations in arc welding encompass fume extraction, radiation protection, electrical hazard mitigation, and proper ergonomics.
Modern commercial welding machines increasingly incorporate safety features such as thermal overload protection, voltage reduction devices (VRD), and advanced arc monitoring systems that detect abnormal conditions and shut down automatically.
- Conduct regular equipment inspections and maintain detailed service records
- Implement comprehensive welding risk assessments following established protocols
- Ensure proper ventilation and fume extraction systems operate effectively
- Provide appropriate personal protective equipment rated for specific welding processes
- Train operators on emergency procedures and equipment-specific safety features
Welding risk assessment procedures help identify potential hazards specific to your operations and establish controls to minimize exposure and prevent accidents.
Equipment Maintenance and Calibration Requirements
A commercial welding machine represents a significant capital investment requiring proactive maintenance to ensure optimal performance and longevity. Establishing comprehensive preventive maintenance schedules protects this investment while maintaining consistent weld quality and operational reliability.
Regular maintenance tasks include cleaning cooling systems, inspecting electrical connections, testing ground circuits, and verifying proper wire feed mechanisms on MIG systems. These routine procedures prevent unexpected failures and costly production interruptions.
Verification and Calibration Standards
Welding machine verification and calibration according to established standards ensures equipment accuracy and reliability. This process verifies that the machine delivers the amperage, voltage, and wire feed speed indicated on its controls, directly impacting weld quality and consistency.
Professional calibration services measure actual output against displayed values, adjusting internal components to restore accuracy when deviations exceed acceptable tolerances. For facilities maintaining quality certifications, documented calibration records prove essential for audits and compliance verification.
Recommended maintenance schedule:
- Daily: Visual inspection of cables, connections, and consumables
- Weekly: Clean wire feed mechanisms and check gas flow rates
- Monthly: Inspect cooling systems and test safety circuits
- Quarterly: Professional calibration verification for critical applications
- Annually: Comprehensive electrical testing and component replacement
Welding businesses serving quality-sensitive industries like oil and gas or pressure vessel fabrication must maintain rigorous calibration schedules to ensure every weld meets specification requirements.
Advanced Technology Integration
The evolution of commercial welding machines continues accelerating with digital control systems, adaptive welding technologies, and quality monitoring capabilities. These innovations enhance productivity while improving weld consistency and reducing defect rates.
Modern machines feature digital displays providing real-time feedback on welding parameters, allowing operators to make immediate adjustments and maintain optimal settings. Synergic MIG systems automatically adjust voltage based on selected wire feed speed, simplifying setup and reducing operator error.
Quality Monitoring and Defect Detection
Research into statistical quality monitoring methods demonstrates how advanced systems can model quality inconsistencies in welding processes, enabling proactive adjustments before defects occur. These technologies particularly benefit high-volume production environments where consistency directly impacts profitability.
Emerging technologies like adaptive welding defect detection frameworks represent the future of quality assurance in commercial welding. These systems use machine learning to identify potential defects in real-time, allowing immediate corrective action rather than discovering issues during post-weld inspection.
| Technology | Benefits | Best Applications |
|---|---|---|
| Pulse MIG | Reduced heat input, better gap bridging | Thin materials, aluminum welding |
| Adaptive Arc Control | Consistent penetration, reduced spatter | Automated and robotic welding |
| Digital Waveform Control | Precise arc characteristics, material-specific optimization | Critical welds, aerospace applications |
| Remote Parameter Control | Operator safety, difficult-to-access welding | Confined spaces, hazardous environments |
Some facilities even explore augmented reality systems for welding applications, providing real-time guidance and quality verification directly within the operator's field of view.

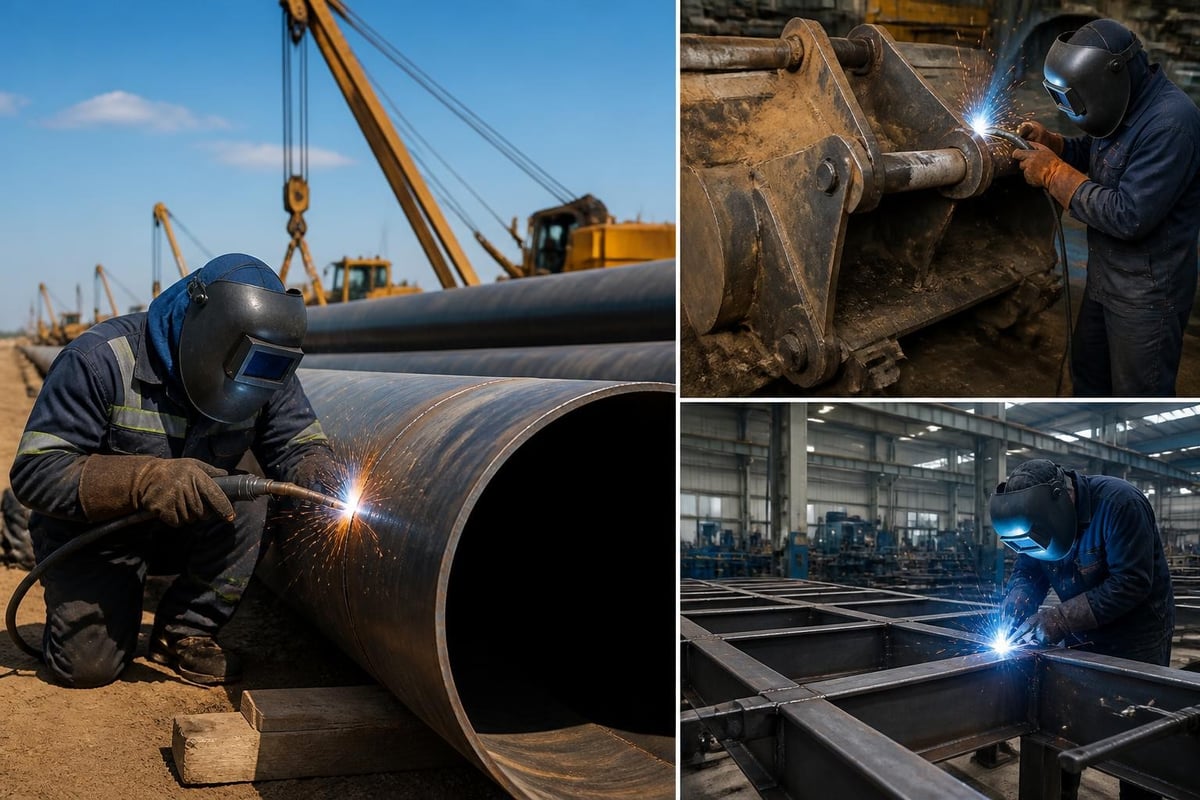

Selecting Equipment for Specific Industrial Applications
Different industrial sectors impose unique demands on commercial welding equipment. Understanding these requirements ensures proper equipment selection aligned with operational needs and industry standards.
Oil and Gas Sector Requirements
Operations serving the oil and gas industry require machines capable of meeting stringent code requirements for pipeline construction, pressure vessel fabrication, and refinery maintenance. These applications demand equipment with exceptional arc stability, precise heat control, and comprehensive documentation capabilities.
Pipeline fabrication contractors typically specify commercial welding machines with advanced pulsed capabilities, enabling quality welds on X70 and X80 grade pipeline steels while meeting API and ASME code requirements.
Aggregate and Recycling Industry Needs
Facilities processing aggregate materials or operating recycling equipment face constant wear on crushers, screens, and conveyor systems. The commercial welding machines serving these operations must handle heavy plate fabrication and hardfacing applications to rebuild worn components.
Key requirements include:
- High deposition rates for rapid component repair
- Capability to weld wear-resistant alloys and hardfacing materials
- Portability for field mechanic services at remote sites
- Rugged construction to withstand harsh environments
- Ability to run on variable power supplies at remote locations
Mobile welding units with engine-driven generators provide essential flexibility for maintaining equipment at quarries, mining operations, and remote processing facilities throughout the Western United States.
Economic Considerations and Total Cost of Ownership
Purchasing a commercial welding machine requires analysis beyond initial acquisition cost. Total cost of ownership encompasses consumables, electricity consumption, maintenance expenses, downtime costs, and expected service life.
High-efficiency inverter machines consume 30-50% less electricity than traditional transformer units, generating substantial savings over their operational lifetime. While inverter technology commands higher upfront costs, reduced operating expenses and improved arc performance typically justify the premium within 2-3 years for facilities running regular production schedules.
Consumables and Operating Costs
Wire, gas, electrodes, and contact tips represent ongoing expenses that vary significantly based on machine efficiency and arc characteristics. A commercial welding machine producing minimal spatter reduces wire consumption and cleanup time, directly impacting profitability on high-volume projects.
Calculate expected annual consumable usage based on your typical project mix:
- Estimate total pounds of wire deposited annually
- Factor material costs including wire, gas, and electrodes
- Account for efficiency losses from spatter and waste
- Calculate labor costs for cleanup and rework
- Compare total costs across different machine technologies
Facilities managing custom manufacturing projects benefit from maintaining detailed records of consumable usage by machine and process, enabling data-driven equipment decisions and identifying optimization opportunities.
Operator Training and Skill Development
Even the most advanced commercial welding machine delivers poor results without properly trained operators. Investment in comprehensive training programs maximizes equipment capabilities and ensures consistent quality output.
Modern welding systems offer sophisticated controls and features requiring operator understanding to exploit fully. Digital interfaces, synergic programming, and advanced arc control systems provide powerful capabilities, but only when operators comprehend their functions and applications.
Essential training components:
- Equipment-specific operation and setup procedures
- Process parameter optimization for various materials
- Safety protocols and emergency response procedures
- Routine maintenance and troubleshooting techniques
- Quality inspection and defect recognition
Companies providing welding expertise across diverse industries maintain ongoing training programs to keep operators current with evolving technologies and industry best practices. This commitment to skill development translates directly into superior work quality and customer satisfaction.
Certification programs through organizations like the American Welding Society validate operator competency and provide structured development pathways. Many industrial customers now require certified welders, making training investment essential for maintaining competitive positioning.
Integration with Fabrication Workflows
A commercial welding machine functions as one component within comprehensive fabrication operations. Optimizing overall workflow efficiency requires considering how welding equipment integrates with cutting systems, material handling, fit-up procedures, and finishing processes.
Facilities engaged in metal manufacturing benefit from coordinating equipment capabilities across departments. For example, plasma cutting systems should produce edge preparations compatible with selected welding processes, while material handling equipment must position components within welding machine cable reach.
Modern fabrication shops increasingly adopt lean manufacturing principles, organizing equipment and workflows to minimize material movement and maximize value-added activities. Positioning commercial welding machines strategically within this layout reduces handling time and improves throughput.
Documentation and Quality Assurance
Industrial welding operations require comprehensive documentation demonstrating compliance with applicable codes and customer specifications. Modern commercial welding machines with data logging capabilities automatically record critical parameters for each weld, simplifying documentation requirements and providing traceability.
This capability proves particularly valuable for pressure vessel fabrication and other code-critical work where complete welding procedure documentation must accompany finished products. Digital records eliminate manual data entry errors and provide reliable evidence of proper procedure execution.
Quality management systems benefit from detailed welding parameter data, enabling statistical process control and continuous improvement initiatives. Analyzing trends in weld quality metrics helps identify training needs, equipment maintenance requirements, or procedural adjustments before defects reach customers.
Selecting and maintaining appropriate commercial welding equipment directly impacts operational efficiency, product quality, and competitive positioning in demanding industrial markets. Understanding technical specifications, safety requirements, and integration considerations enables informed equipment decisions that support long-term business objectives. Whether your operations require structural fabrication, field repair services, or specialized manufacturing capabilities, LTJ Industrial Services delivers comprehensive welding, machining, and fabrication expertise throughout the Western United States, helping businesses across recycling, aggregate, oil and gas, and manufacturing sectors achieve their production goals with quality and reliability.
